FMWTR1009

$710.56

Description：WG TERMINATION WR-112 7.05-10 GH
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:240edcf74e54 Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：WG TERMINATION WR-112 7.05-10 GH
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Termination
Frequency：7.05GHz ~ 10GHz
RF Type：Radar
Secondary Attributes：5W
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Grade：-
Qualification：-

Download product information

FMWTR1009

Overview

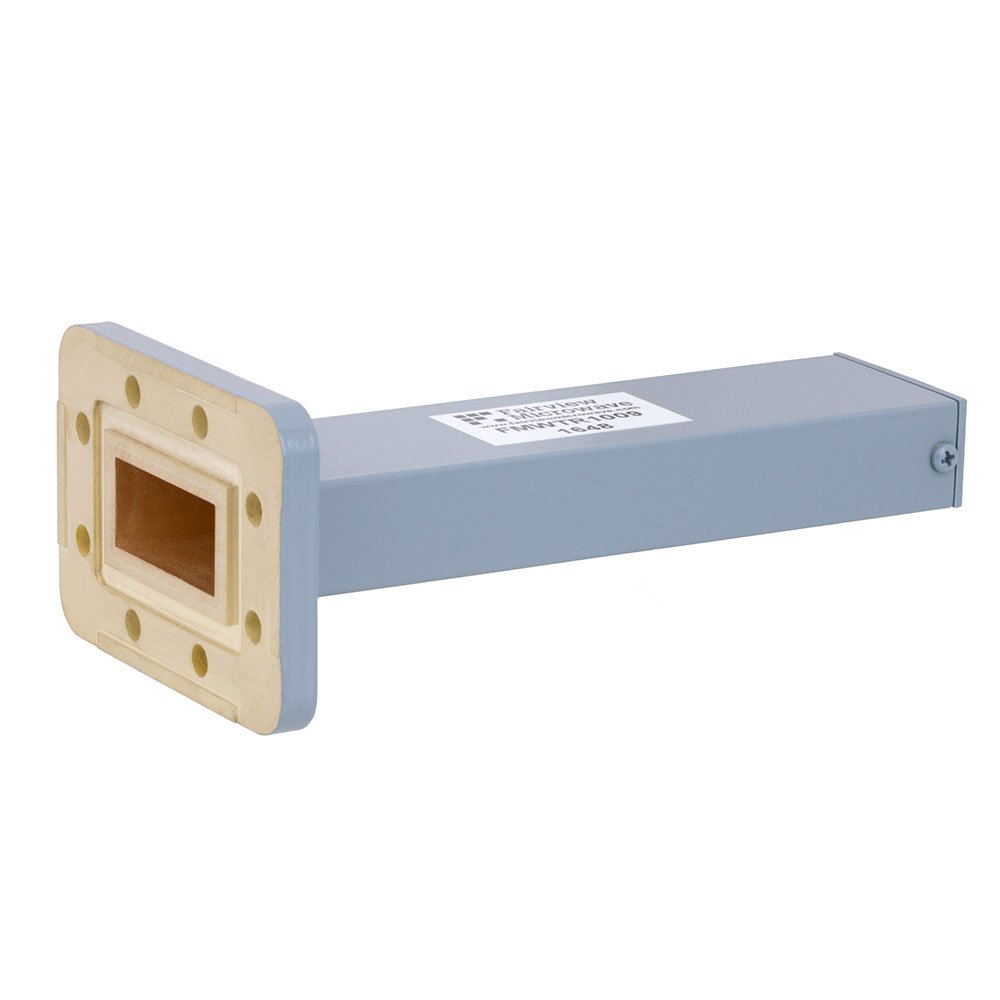

The FMWTR1009 is a commercial-grade WR-112 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 7.05 GHz to 10 GHz and is rated for a maximum power handling capacity of 5 Watts. The device features a brass body material, ensuring durability and effective thermal management during operation. Designed as a precision RF component, it provides reliable signal absorption in waveguide systems, maintaining consistent performance across its specified bandwidth.

Feature Summary

Commercial-grade construction suitable for general RF applications
Brass body material for structural integrity and heat dissipation
Designed for WR-112 waveguide interface compatibility

Applications

Waveguide system load termination
RF signal absorption in test setups
Microwave measurement equipment components

Procurement Notes

Verify the specific WR-112 waveguide interface requirements against your system design before procurement. Confirm that the 5-watt power rating aligns with your operational signal levels to prevent damage. Ensure the 7.05 GHz to 10 GHz frequency range covers your intended application spectrum. Check for any specific mounting or flange requirements associated with the WR-112 standard.

Selection Notes

Select this component when a WR-112 waveguide termination is required for frequencies between 7.05 GHz and 10 GHz. Consider the 5-watt power limit when evaluating high-power scenarios. The brass construction offers a balance of cost-effectiveness and performance for commercial-grade applications. Ensure compatibility with existing waveguide hardware dimensions.

Part Context

This part belongs to Fairview Microwave's line of RF terminators, specifically designed for waveguide applications. It serves as a passive component to absorb microwave energy, preventing reflections in transmission lines. The WR-112 designation indicates its physical size and interface standard, distinguishing it from other waveguide sizes like WR-90 or WR-62.
