FMWTR1010

Overview

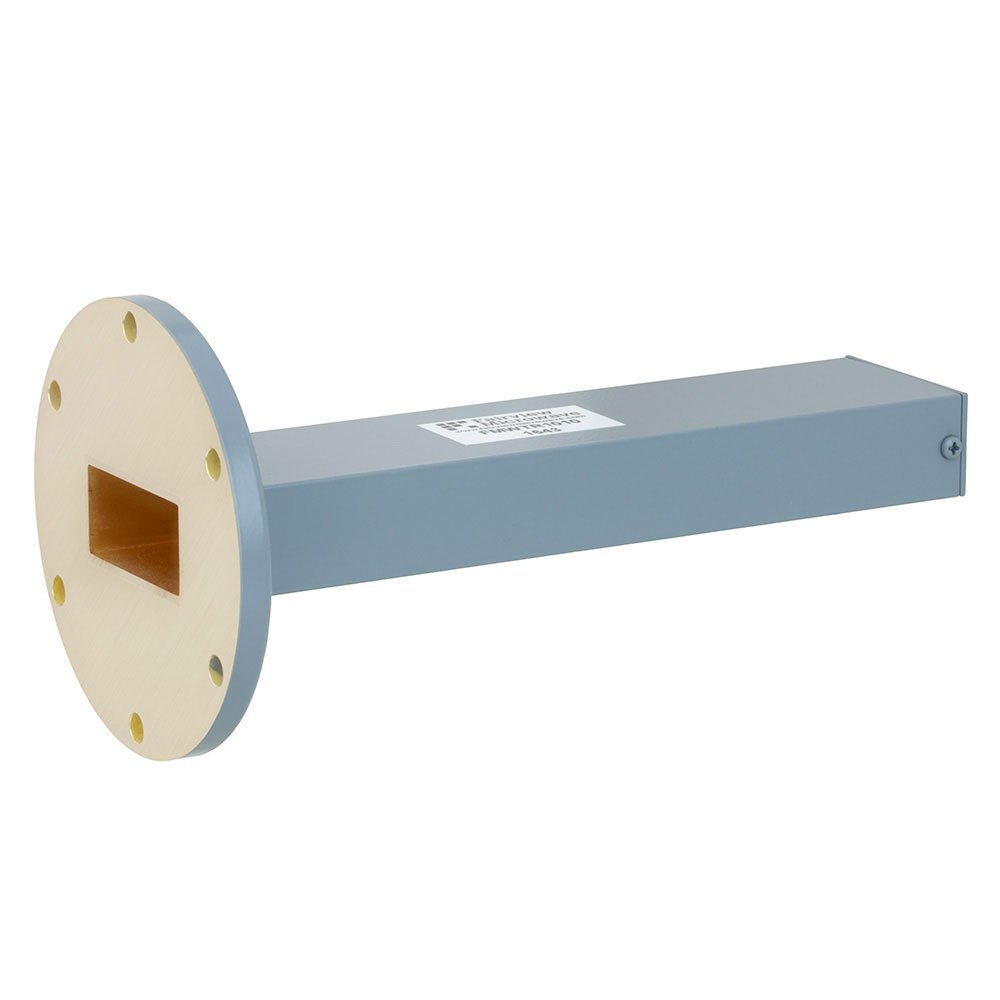

The FMWTR1010 is a commercial-grade WR-137 waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 5.85 GHz to 8.2 GHz and features a maximum power handling capacity of 6 Watts. The component body is constructed from brass material, ensuring durability for RF applications. This terminator is designed to absorb microwave energy effectively within the specified band, providing a matched load for waveguide systems.

Feature Summary

• Provides effective RF energy absorption in WR-137 waveguide systems
• Operates reliably within the 5.85 GHz to 8.2 GHz frequency spectrum
• Constructed with a durable brass body for robust performance

Applications

• Microwave test and measurement setups requiring matched loads
• Waveguide system termination to prevent signal reflection
• RF equipment calibration and characterization environments

Procurement Notes

Verify the specific WR-137 interface compatibility before integration. Confirm that the 6 Watt power rating aligns with your system's operational limits. Ensure the frequency range covers your required application bandwidth. Check for any environmental constraints regarding the brass construction.

Selection Notes

Select this model when a WR-137 waveguide termination is required. Consider the 6 Watt power limit for thermal management. Evaluate the 5.85 GHz to 8.2 GHz range against your signal frequencies. Brass construction offers standard durability for commercial grade use cases.

Part Context

This component belongs to the RF Terminators category under Fairview Microwave's interconnect solutions. It serves as a passive device for managing microwave signals in waveguide infrastructure. The product supports standard commercial grade requirements for RF testing and system stability.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
