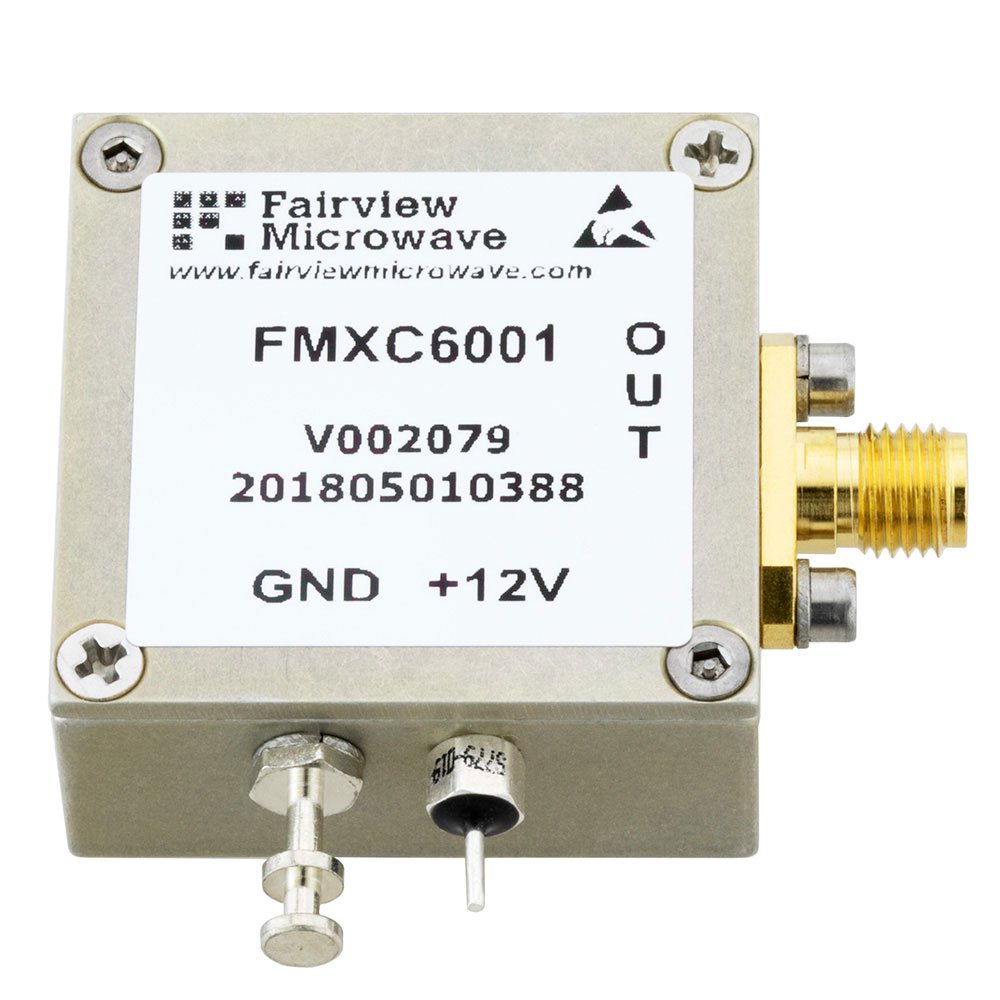

FMXC6001

Description：TCXO OSCILLATOR, 20 MHZ REF, -14
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:cf9fe6afcbc4 Category: VCOs (Voltage Controlled Oscillators) Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：TCXO OSCILLATOR, 20 MHZ REF, -14
Series：-
Mfr：Fairview Microwave
Package：Bag
Frequency Range：-
Frequency - Center：20MHz
Voltage - Supply：12V
Tuning Voltage (VDC)：-
2nd Harmonic, Typ (dBc)：-
Icc Max：15mA
Pushing (MHz/V)：-
Power (dBm)：-
Phase Noise Typ (dBc/Hz)：-95
Operating Temperature：-30°C ~ 75°C
Package / Case：Module, SMA Connectors
Size / Dimension：1.250" L x 1.250" W (31.75mm x 31.75mm)
Height：0.568" (14.43mm)

Download product information

FMXC6001

Overview

The FMXC6001 is a Voltage Controlled Oscillator (VCO) manufactured by Fairview Microwave. It features a center frequency of 20 MHz and utilizes TCXO technology with a reference input. The component is designed for RF signal generation applications.

Feature Summary

Voltage controlled oscillator architecture
TCXO technology implementation
20 MHz center frequency operation

Applications

RF signal generation
Frequency synthesis systems
Test and measurement equipment

Procurement Notes

Verify the specific datasheet version to confirm pinout configuration and electrical tolerances. Ensure the 20 MHz reference input requirements match your system design. Check RoHS compliance status if required for your manufacturing process.

Selection Notes

Select this component when a stable 20 MHz VCO source is required. Consider the TCXO stability characteristics against environmental variations. Verify that the output power and harmonic specifications meet your downstream circuit requirements.

Part Context

This part belongs to Fairview Microwave's RF and microwave component portfolio, which includes various oscillators and signal generators. It complements their range of cable assemblies and adapters for complete RF system integration.

Replacement Considerations

No public substitute part numbers are documented in the provided data. Consult manufacturer documentation for direct replacements or functional equivalents.
