FMXC7006

Overview

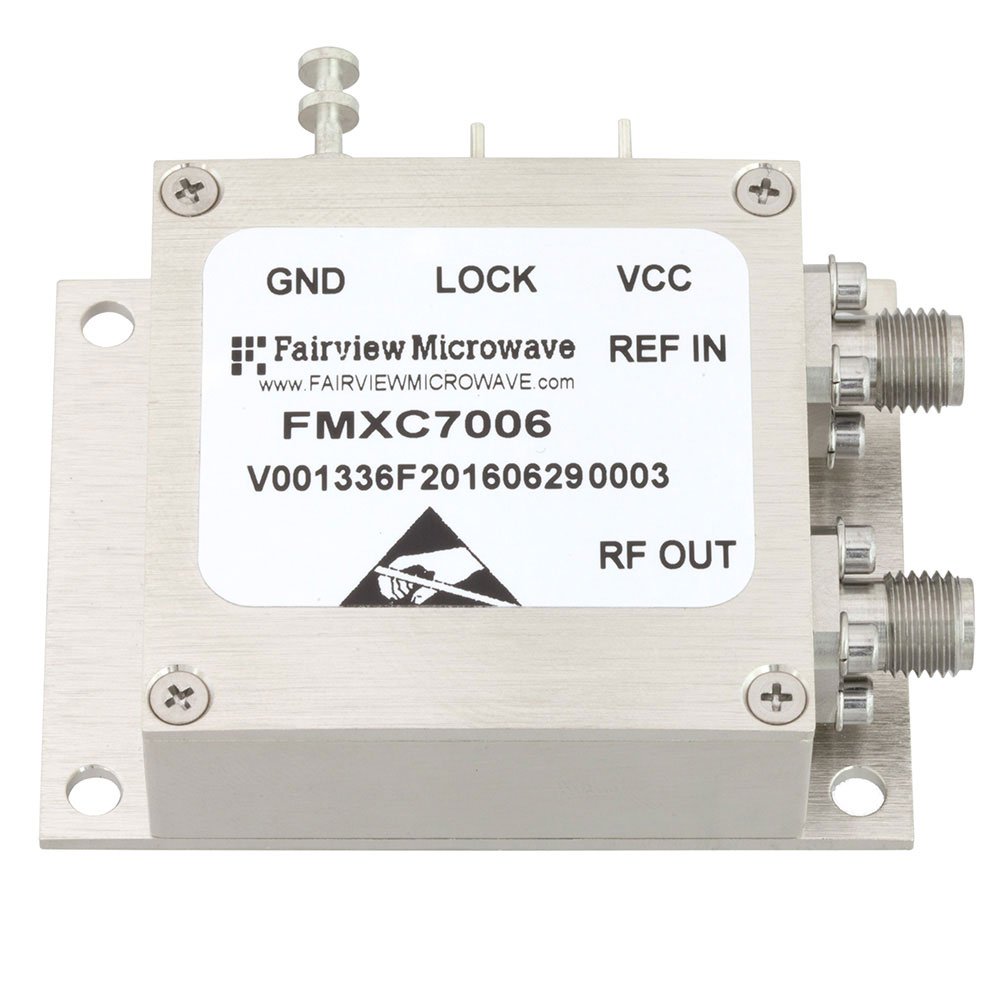

The FMXC7006 is a phase-locked loop (PLL) oscillator manufactured by Fairview Microwave, designed for general-purpose RF applications. It operates at a frequency of 1 GHz and utilizes an external reference input of 100 MHz to maintain signal stability. The device features SMA connectors for interface connectivity and delivers a typical phase noise performance of -110 dBc/Hz. Electrical requirements include an operating supply voltage of 12 VDC and an operating supply current of 150 mA.

Feature Summary

• Integrates phase-locked loop technology for stable frequency generation
• Supports external reference input for synchronization
• Utilizes SMA connectors for reliable RF interfacing

Applications

• General purpose RF signal generation
• Test and measurement equipment
• Communication systems requiring stable oscillation

Procurement Notes

Verify the specific datasheet version to confirm electrical tolerances and pinout configurations before integration. Ensure that the power supply meets the 12 VDC requirement with sufficient current capacity to support the 150 mA load. Confirm mechanical compatibility of SMA interfaces with the target system layout.

Selection Notes

Select this component when a 1 GHz output frequency is required with low phase noise characteristics. Consider the need for an external 100 MHz reference source in the system design. Evaluate the 12 VDC power supply availability and current handling capabilities within the host application environment.

Part Context

Fairview Microwave specializes in high-quality RF and microwave components, including oscillators, amplifiers, and cable assemblies. The FMXC7006 belongs to their portfolio of active RF devices intended for precision signal generation in demanding electronic environments.

Replacement Considerations

No public substitute part numbers are documented.
