Product Detailed Parameters
- Description：PHASE LOCKED OSCILLATOR 4 GHZ -1
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：RF Oscillator
- Frequency：4GHz
- RF Type：General Purpose
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

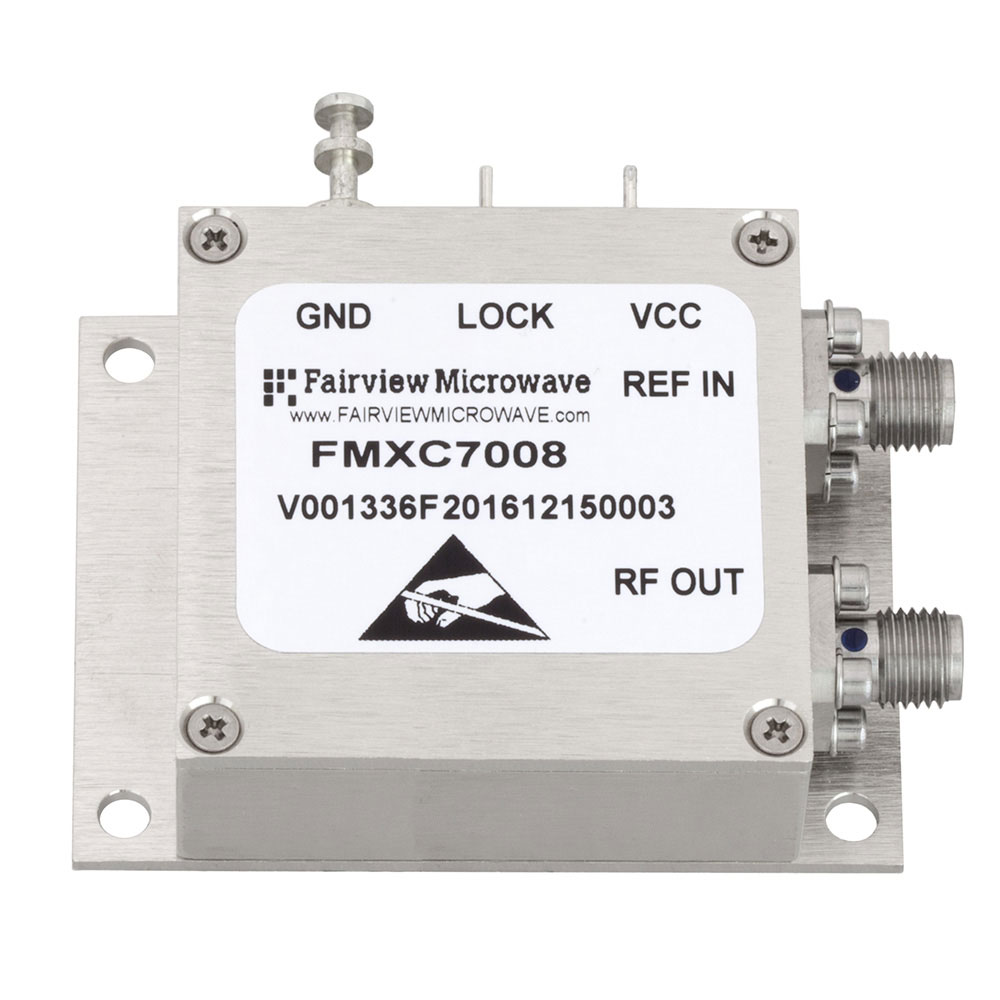

The FMXC7008 is a 4 GHz phase-locked oscillator manufactured by Fairview Microwave. It utilizes an external 100 MHz reference input to generate the output signal. The device features exceptional phase noise performance, specified at -110 dBc/Hz. This component is designed for applications requiring stable high-frequency signal generation with precise frequency control via the external reference source.
Feature Summary
- Generates a 4 GHz output signal using a phase-locked loop architecture
- Operates with an external 100 MHz reference input for frequency stability
- Delivers low phase noise characteristics of -110 dBc/Hz
Applications
- High-frequency signal generation systems
- Test and measurement equipment requiring stable references
- Communication systems utilizing phase-locked oscillators
Procurement Notes
Verify the specific datasheet version for the FMXC7008 to confirm electrical tolerances and pinout configurations before integration. Ensure that the system design supports the required 100 MHz external reference input signal levels. Confirm mechanical mounting requirements and thermal management needs for the oscillator module in the final application environment.
Selection Notes
Select the FMXC7008 when a fixed 4 GHz output is required with high spectral purity. The choice depends on the availability of a clean 100 MHz reference source within the system. Consider the phase noise specification of -110 dBc/Hz against system sensitivity requirements. Evaluate the physical form factor and interface compatibility with existing RF infrastructure.
Part Context
Fairview Microwave produces specialized RF and microwave components for demanding applications. The FMXC7008 belongs to their oscillator portfolio, providing precise frequency synthesis. These components support industries requiring reliable high-frequency signal sources. The manufacturer focuses on delivering consistent performance for critical electronic systems.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative oscillators based on frequency, phase noise, and reference input specifications.
