FMXP5001

Overview

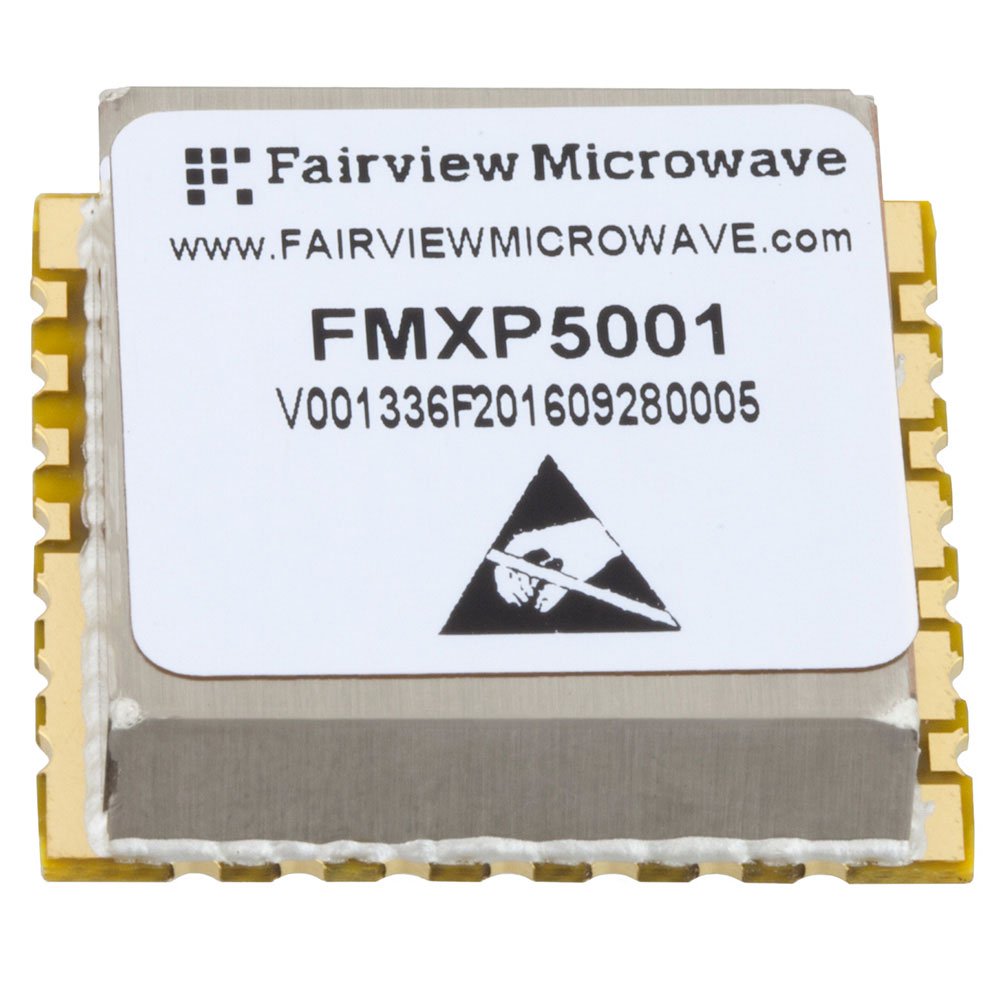

The FMXP5001 is a general-purpose phase-locked crystal oscillator manufactured by Fairview Microwave. It operates at a fixed frequency of 100 MHz and utilizes a 5V supply voltage. The component is housed in a 28-SMD surface-mount package, designed for integration into compact electronic circuits. It features an external reference input capability, allowing for synchronization with other system clocks. The device is engineered to provide stable signal generation within a defined thermal operating range.

Feature Summary

• Phase-locked loop architecture for frequency stability
• Surface-mount SMD package design for automated assembly
• Supports external reference input for clock synchronization

Applications

• General purpose timing applications requiring 100 MHz signals
• Electronic systems utilizing 5V power supplies
• Circuits requiring surface-mount clock sources

Procurement Notes

Verify the specific datasheet version and mechanical dimensions against your PCB layout requirements before ordering. Confirm that the 28-SMD package footprint matches your design constraints. Ensure the 5V supply voltage aligns with your system's power distribution network. Check for any specific handling or storage conditions outlined in the manufacturer's documentation to maintain component integrity during installation.

Selection Notes

Select this component when a 100 MHz output frequency is required for general-purpose applications. Consider the 28-SMD package size relative to available board space. Verify compatibility with 5V logic levels and power supplies. Evaluate the need for external reference inputs if precise clock synchronization is necessary for the target application environment.

Part Context

This oscillator belongs to the category of RF miscellaneous ICs and modules offered by Fairview Microwave. It serves as a standard clock source for various electronic designs. The product line focuses on providing reliable timing solutions for industrial and commercial equipment. As a surface-mount device, it facilitates efficient manufacturing processes for modern electronics.

FAQ

What is the operating temperature range for the FMXP5001?

The component operates within a minimum temperature of -40°C and a maximum temperature of +70°C.

Does the FMXP5001 support external reference inputs?

Yes, the device supports an external reference input, typically specified as 10 MHz in related documentation.
