FMXP5002

Overview

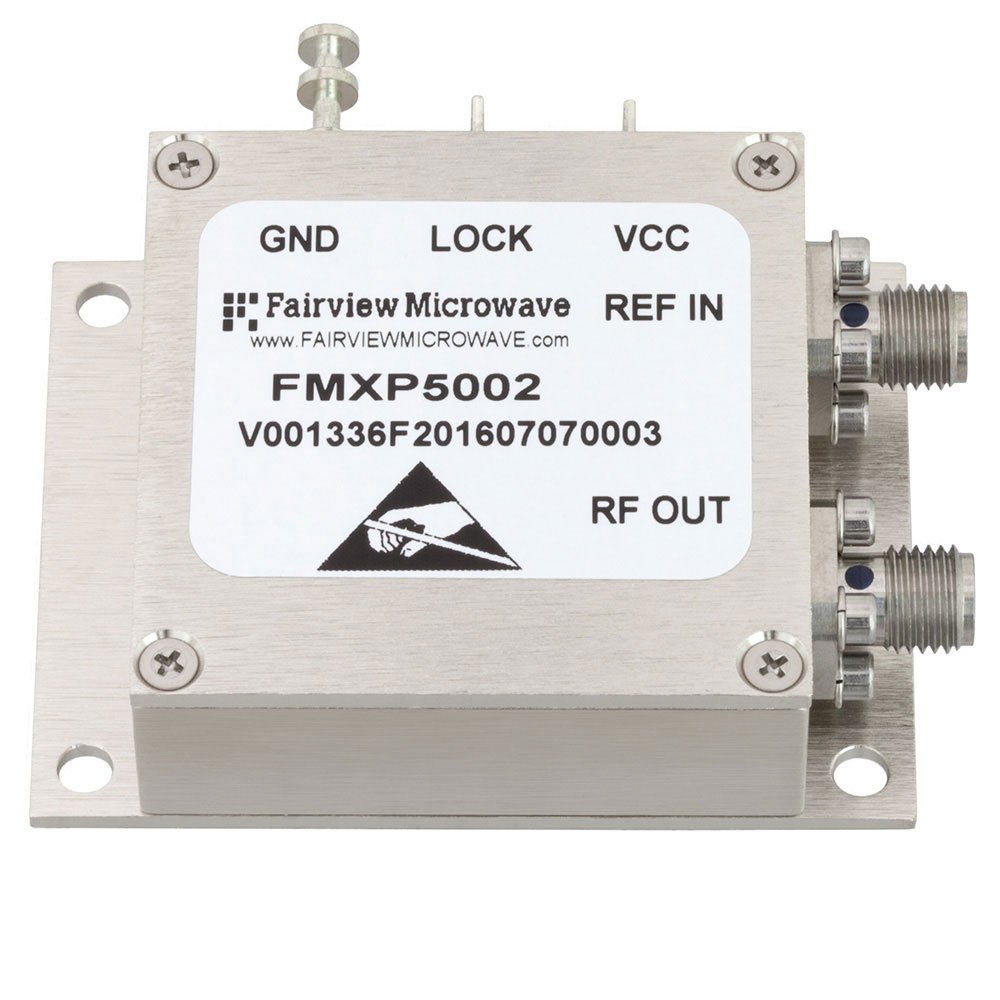

The FMXP5002 is a phase-locked crystal oscillator manufactured by Fairview Microwave. It operates at a frequency of 50 MHz and utilizes an external 10 MHz reference input. The device features exceptional phase noise performance, specified at -155 dBc/Hz. It is designed for general-purpose RF applications and employs SMA connectors for signal interfacing. The unit is configured as a chassis-mount module.

Feature Summary

• Phase-locked loop architecture utilizing an external 10 MHz reference source
• Exceptional phase noise performance characteristics
• Chassis mount configuration with SMA connector interfaces

Applications

• General purpose RF signal generation
• Frequency synthesis systems requiring low phase noise
• Test and measurement equipment reference sources

Procurement Notes

Verify the specific datasheet version to confirm exact electrical tolerances and pinout configurations before integration. Ensure the external 10 MHz reference source meets the required stability and phase noise specifications to maintain overall system performance. Confirm chassis mounting requirements and thermal management needs for the application environment.

Selection Notes

Select this component when a stable 50 MHz output with high spectral purity is required. The reliance on an external 10 MHz reference necessitates careful selection of the reference source. Consider the chassis mount form factor for mechanical integration constraints. Verify that the SMA interface compatibility aligns with existing cabling and connector infrastructure.

Part Context

This part belongs to the Fairview Microwave line of controlled oscillators. It is categorized under RF modules and wireless components. The product status is listed as active. It serves as a specialized frequency source within broader RF system architectures, distinct from standard voltage-controlled oscillators due to its phase-locked design.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Direct replacement requires matching the 50 MHz frequency, SMA interface, and phase noise specifications. Consult manufacturer resources for potential obsolescence or alternative series recommendations.

FAQ

What is the reference frequency input for the FMXP5002?

The FMXP5002 requires an external 10 MHz reference oscillator input to function.

What type of connectors does the FMXP5002 use?

The module utilizes SMA connectors for its interface connections.
