FMXP5003

Overview

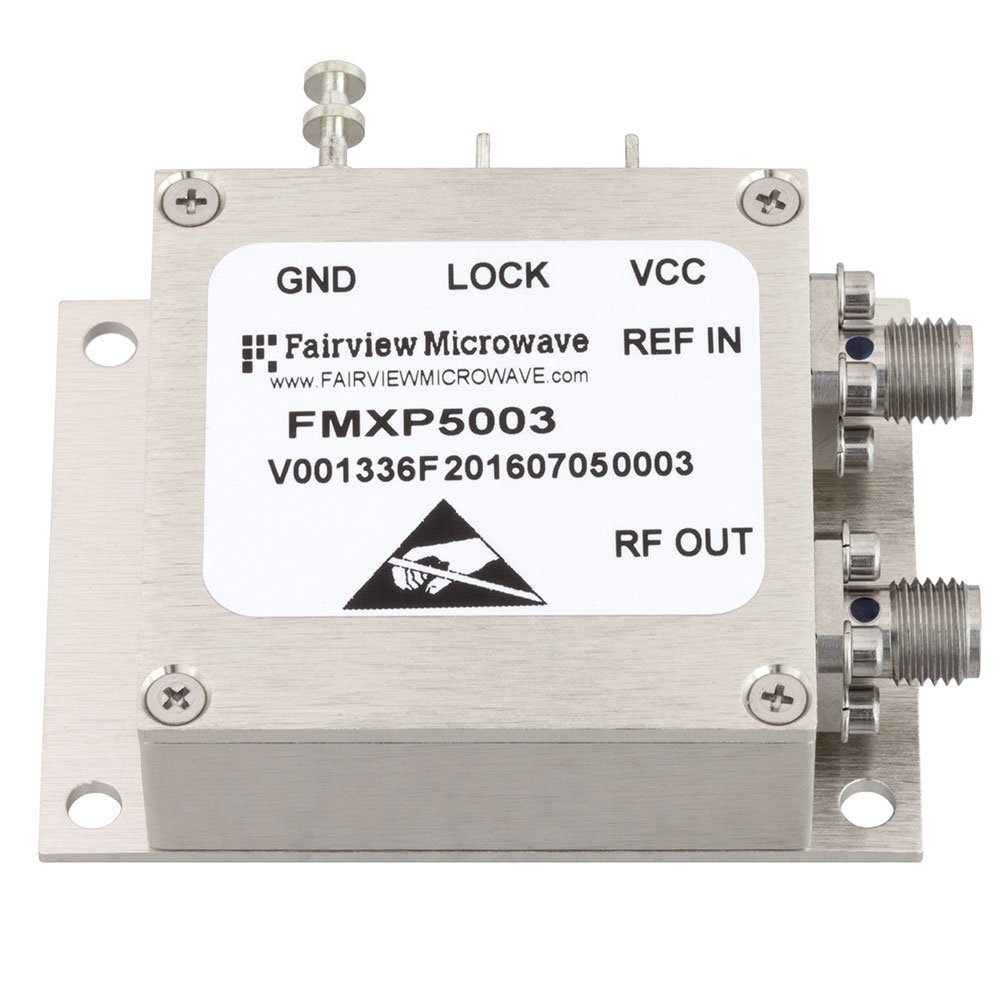

The FMXP5003 is a standard clock oscillator manufactured by Fairview Microwave, categorized under RF miscellaneous ICs and modules. It operates at a frequency of 100 MHz and utilizes a phase-locked crystal design. The module features SMA termination style connectors for input and output interfaces. It is designed to function within an operating temperature range from -40°C to +70°C. The unit is packaged in a bag for shipping and handling.

Feature Summary

• Phase-locked crystal oscillator architecture providing stable frequency generation
• SMA connector termination style for standardized interface compatibility
• Operational capability across a defined industrial temperature range

Applications

• General purpose RF signal generation
• Clock reference source for electronic systems
• RF module integration requiring 100 MHz stability

Procurement Notes

Verify the specific datasheet version and technical specifications directly with Fairview Microwave or authorized distributors before procurement. Confirm that the SMA termination style and 100 MHz frequency align with system requirements. Check current supply status as availability may vary. Ensure environmental ratings meet operational needs.

Selection Notes

Select this component when a 100 MHz phase-locked crystal oscillator is required for general RF applications. The SMA interface ensures compatibility with standard test and measurement equipment. Consider the -40°C to +70°C operating range for environmental suitability. Verify package type and lead times with suppliers prior to final selection.

Part Context

Fairview Microwave supplies RF, microwave, and wireless components. The FMXP5003 falls within their portfolio of RF miscellaneous integrated circuits and modules. This product supports applications needing precise frequency references in radio frequency environments.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer resources for potential alternatives if this specific model is unavailable.

FAQ

What is the operating frequency of the FMXP5003?

The FMXP5003 operates at a frequency of 100 MHz.

What type of connectors does the FMXP5003 use?

The module uses SMA termination style connectors.
