FMXP5008

Overview

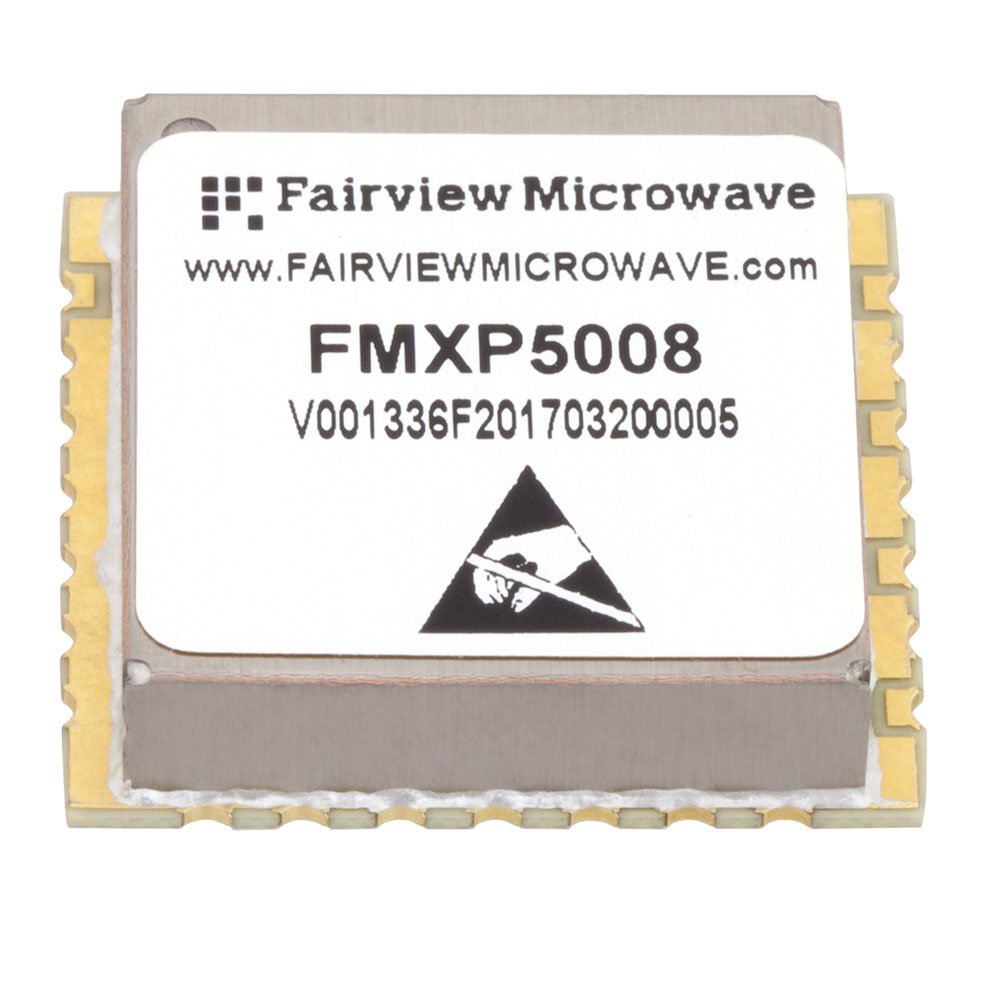

The FMXP5008 is a phase-locked oscillator manufactured by Fairview Microwave, operating at a center frequency of 6 GHz. The device provides an output power level of -9 dBm. It is classified as an RF miscellaneous IC and module within the manufacturer's portfolio. The component is packaged in a bag for handling and storage. This product is currently listed with an obsolete status, indicating it is no longer actively produced or marketed by the original equipment manufacturer.

Feature Summary

• Generates a stable 6 GHz signal using phase-locked loop technology
• Delivers consistent -9 dBm output power for downstream circuitry
• Designed for integration into RF test and measurement systems

Applications

• RF signal generation in test and measurement equipment
• Local oscillator sources in communication subsystems
• Frequency reference modules for radar systems

Procurement Notes

Verify availability through authorized distributors or secondary markets due to the obsolete status. Confirm pinout compatibility and thermal requirements against current design specifications. Request updated datasheets from remaining stock holders to ensure accurate electrical parameters. Validate that alternative components meet identical frequency and power specifications for seamless integration.

Selection Notes

Select this component only if the specific 6 GHz frequency and -9 dBm output align precisely with system requirements. Consider the obsolete status when planning long-term production lifecycles. Evaluate available substitutes based on matching interface characteristics and performance metrics. Ensure that existing inventory can support the required deployment timeline without supply chain disruptions.

Part Context

The FMXP5008 belongs to Fairview Microwave's range of RF integrated circuits and modules. It serves as a specialized frequency source within the broader category of microwave and millimeter-wave products. The manufacturer focuses on providing high-performance components for defense, aerospace, and industrial applications. This specific model represents a legacy solution for fixed-frequency oscillation needs.
