FMXR1000

Overview

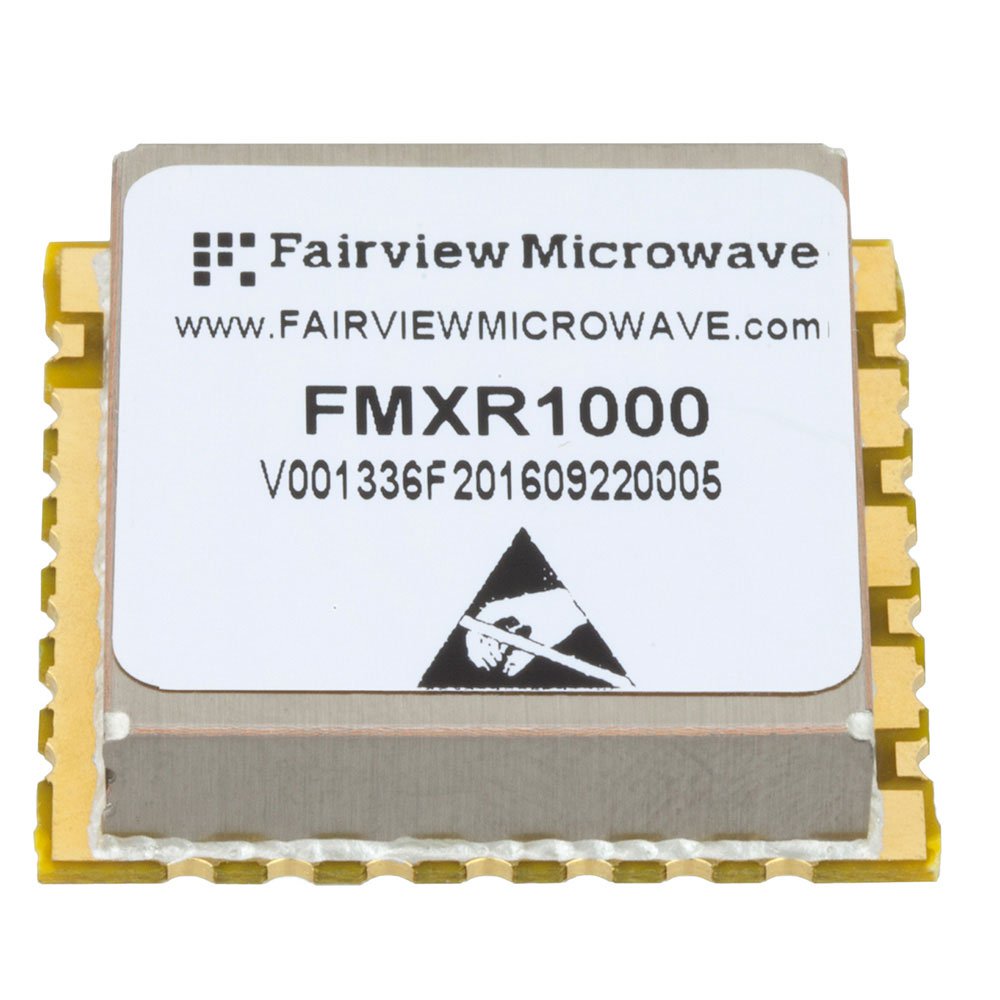

The FMXR1000 is a general-purpose RF oscillator manufactured by Fairview Microwave. It operates at a fixed frequency of 10 MHz and requires a 5V supply voltage. The component utilizes an SMD/SMT termination style for surface mount integration. It features a frequency stability of 5 PPM. The device is designed to function within an operating temperature range from -30°C to +70°C.

Feature Summary

• Provides a free-running reference signal output
• Utilizes surface mount technology for board integration
• Operates on a single 5V power supply

Applications

• General purpose RF signal generation
• Test and measurement equipment reference sources
• Communication system clocking

Procurement Notes

Verify the specific package dimensions and pinout configuration against the official datasheet before PCB layout finalization. Confirm that the 5V supply voltage aligns with the target system power rails. Ensure the operating temperature range meets the environmental requirements of the intended application zone. Cross-reference the 5 PPM stability specification with system timing tolerance limits.

Selection Notes

Select this component when a stable 10 MHz reference is required for general RF applications. The SMD form factor suits automated assembly processes. Consider the 5V supply requirement during power budget analysis. Evaluate the thermal performance within the specified -30°C to +70°C range against local ambient conditions.

Part Context

This part belongs to the Fairview Microwave RF IC and module portfolio. It serves as a standalone oscillator solution rather than a passive component. The product line focuses on providing reliable frequency references for electronic systems requiring precise timing signals.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing circuit designs if sourcing alternatives.
