FMXR1003

Overview

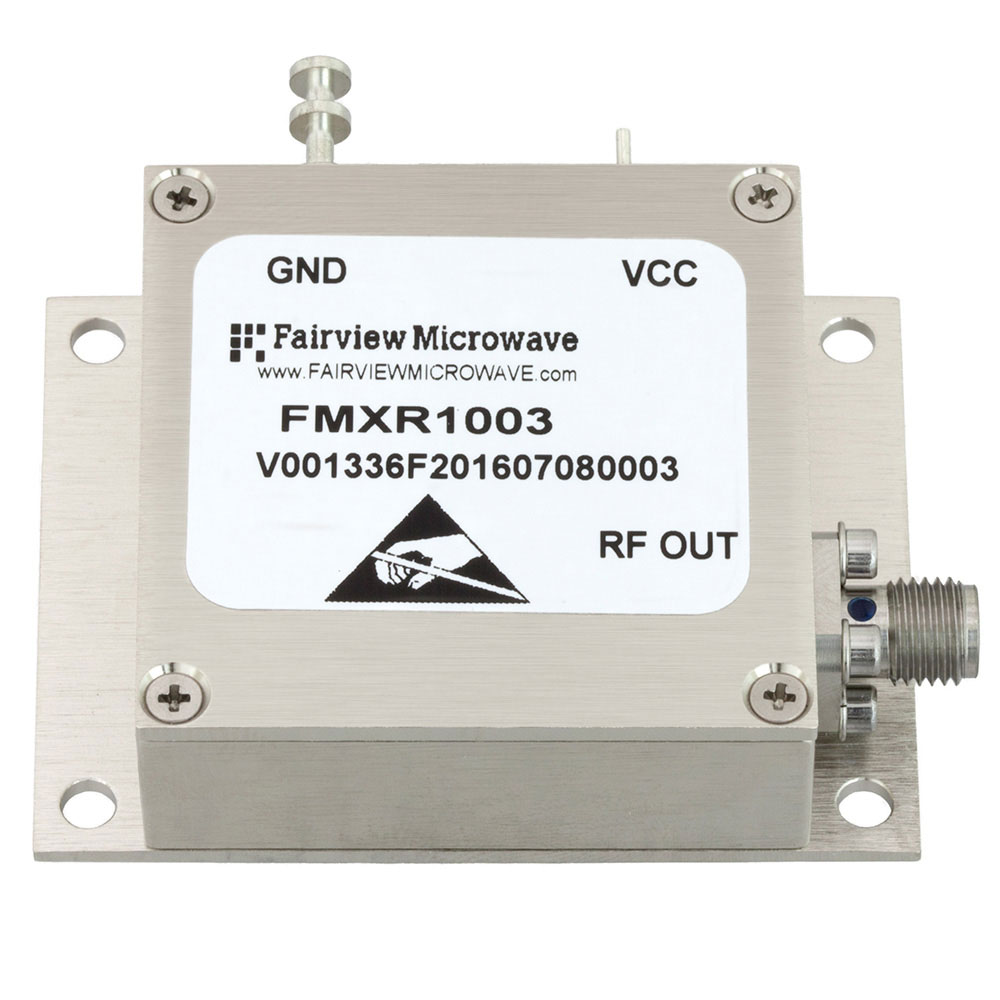

The FMXR1003 is a free-running reference oscillator manufactured by Fairview Microwave, operating at a center frequency of 10 MHz. It features an internal reference source and delivers a phase noise performance of -150 dBc/Hz. The component is designed for surface-mount technology (SMT) applications, housed in a compact 0.9-inch package. This oscillator serves as a stable frequency reference for RF systems requiring precise timing signals within its specified operational parameters.

Feature Summary

• Provides a stable 10 MHz output signal via an internal reference mechanism
• Achieves low phase noise performance of -150 dBc/Hz for signal integrity
• Utilizes a compact 0.9-inch surface-mount package for space-constrained designs

Applications

• RF system timing references
• Test and measurement equipment
• Communication infrastructure

Procurement Notes

Verify the specific datasheet version for the FMXR1003 to confirm current manufacturing status and environmental compliance details. Check with authorized distributors for availability, as supply chain conditions may vary. Ensure that the surface-mount footprint matches the design layout requirements before finalizing procurement orders.

Selection Notes

Select the FMXR1003 when a 10 MHz reference with -150 dBc/Hz phase noise is required in a small SMT form factor. Compare against other models like the FMXR1002 if different frequencies or stability metrics are needed. Evaluate thermal management needs based on the 0.9-inch package size and intended operating temperature range.

Part Context

This component belongs to Fairview Microwave's standard oscillator lineup, which includes various frequencies and package types. It complements other RF modules and amplifiers from the manufacturer, providing essential clocking solutions for broader RF interconnect and module ecosystems.
