FMXR1005

Overview

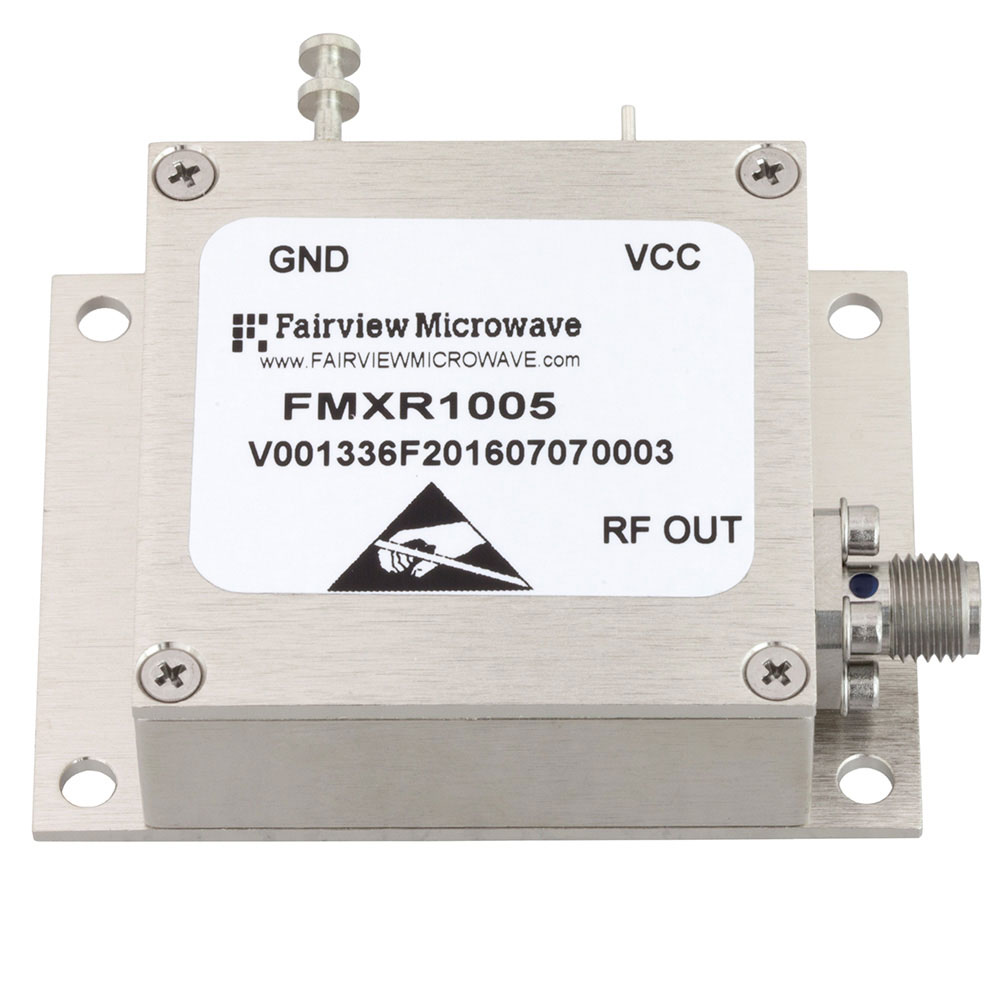

The FMXR1005 is a standard clock oscillator manufactured by Fairview Microwave, designed for general-purpose RF applications. It operates at a frequency of 100 MHz with a frequency stability of 5 PPM. The device utilizes an internal reference and features a surface-mount (SMD/SMT) package with SMA connectors. It exhibits a phase noise of -150 dBc/Hz. The unit weighs approximately 8.845 grams.

Feature Summary

• Provides a free-running 100 MHz reference signal using an internal oscillator source.
• Constructed in a compact surface-mount package suitable for automated assembly processes.
• Equipped with SMA connectors to facilitate direct integration into RF test and measurement systems.

Applications

• General-purpose RF signal generation
• Test and measurement equipment reference sources
• Clock distribution systems

Procurement Notes

Verify the specific connector configuration and mounting style against system requirements before ordering. Confirm that the SMA interface aligns with existing cabling infrastructure. Ensure the 100 MHz output frequency matches the target application's timing needs. Check environmental ratings if operation outside standard conditions is required.

Selection Notes

Select this component when a stable 100 MHz reference is needed in a surface-mount form factor. Consider the SMA interface for ease of connection in lab environments. Evaluate the 5 PPM stability against system jitter requirements. Compare phase noise specifications with other oscillators if high spectral purity is critical for the application.

Part Context

This model belongs to the standard oscillator category within Fairview Microwave's portfolio. It serves as a fundamental timing source for electronic systems requiring precise frequency references. The design focuses on reliability and ease of integration into RF circuits.

Replacement Considerations

No public substitute part numbers are documented for this component. Verify compatibility with existing circuit designs before considering alternative manufacturers or models.

FAQ

What is the operating frequency of the FMXR1005?

The FMXR1005 operates at a fixed frequency of 100 MHz.

Does the FMXR1005 use an external or internal reference?

The FMXR1005 utilizes an internal reference oscillator.
