Product Detailed Parameters
- Description：LINE FILTER 250VAC 1A CHASS MNT
- Series：FN 2010
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：1:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：12mH
Download product information
Overview

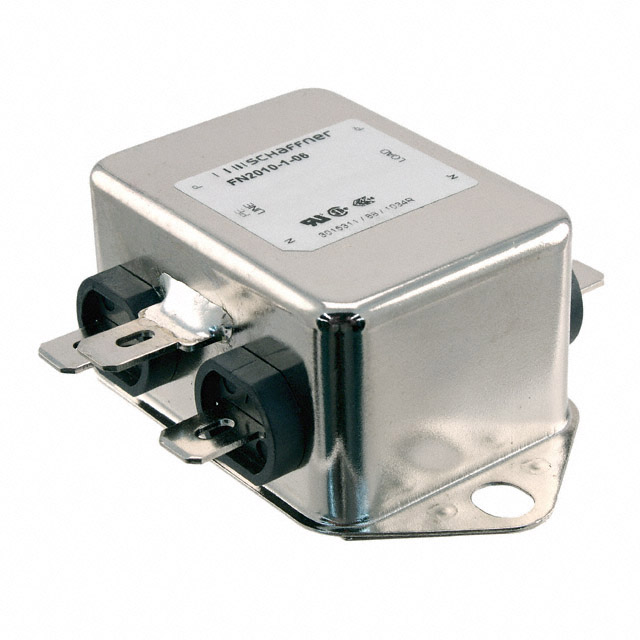

The Schaffner FN2010-1-06 is a single-phase EMI/EMC power line filter designed for chassis mounting. It supports AC and DC voltages up to 250V and operates within a frequency range of 0Hz to 400Hz. The component features quick-connect terminals for circuit integration. Key electrical parameters include a rated current of 1A, capacitance of 100nF, inductance of 600μH, and leakage current of 0.74mA. It functions reliably between -25°C and 100°C with a power loss of 3.8W.
Feature Summary
- Single-stage attenuation design for effective noise suppression
- Quick-connect terminal configuration for simplified assembly
- Chassis mount construction for stable mechanical installation
Applications
- Industrial control systems
- Medical equipment
- Telecommunications infrastructure
Procurement Notes
Verify the specific part number against official TE Connectivity Schaffner documentation to confirm terminal type and rating compatibility. Ensure the application voltage and current requirements align with the component specifications before procurement. Cross-reference datasheets for environmental ratings and certification status to meet regulatory compliance needs.
Selection Notes
Select this model for applications requiring single-phase filtering with quick-connect termination. Verify that the 1A current rating and 250V voltage limit suit the system requirements. Consider the chassis mounting style and physical dimensions for enclosure integration. Confirm operating temperature range suitability for the intended environment.
Part Context
The FN2010 series represents a line of single-phase EMI filters from Schaffner. These components are engineered for general-purpose noise suppression in power lines. The series offers various current ratings and terminal options to accommodate different system designs and integration constraints.
FAQ
What is the maximum operating voltage for the FN2010-1-06?
The maximum operating voltage is 250V AC or DC.
Does the FN2010-1-06 support frequencies above 400Hz?
No, the specified operating frequency range is 0Hz to 400Hz.
