FN2010-1-07

Overview

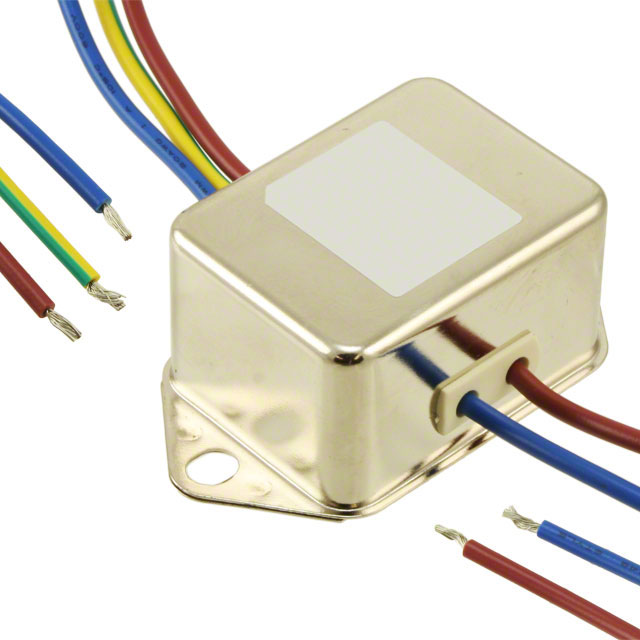

The Schaffner FN2010-1-07 is a single-phase AC/DC EMC/RFI filter designed for chassis mounting. It features wire output connections and supports a maximum current rating of 1A at a voltage rating of 250VAC. The component operates within a temperature range of -25°C to +100°C, ensuring reliability in standard industrial environments.

Feature Summary

• Single-phase configuration for general-purpose AC/DC applications
• Chassis mount design with wire output terminals
• Standard performance EMC/RFI filtering capabilities

Applications

• Industrial equipment power supply input stages
• General purpose electronic device EMI suppression
• Chassis-mounted control panel integration

Procurement Notes

Verify the specific part number suffix against official Schaffner documentation to confirm terminal type and mounting style. Ensure the application environment remains within the specified -25°C to +100°C operating range. Confirm that the 1A current rating meets the load requirements without derating issues. Check RoHS compliance status if required by project specifications.

Selection Notes

Select this model when a single-phase, chassis-mount solution is required for low-current applications up to 1A. Consider the wire output format for direct cabling rather than PCB mounting. Evaluate the thermal environment to ensure operation stays within the rated temperature limits. Compare against higher current variants in the FN2000 series if load demands exceed 1A.

Part Context

This component belongs to the Schaffner FN2000 series of EMI filters, which are engineered for standard performance requirements. The series covers a wide current range from 1A to 60A, providing versatile options for various power line filtering needs across different industrial and commercial sectors.

Replacement Considerations

Consult official Schaffner substitution guides for verified equivalents. Cross-reference electrical ratings such as 1A current and 250VAC voltage to ensure compatibility. Verify mechanical dimensions and mounting hole patterns to fit existing chassis layouts.
