FN2010-10-07

Overview

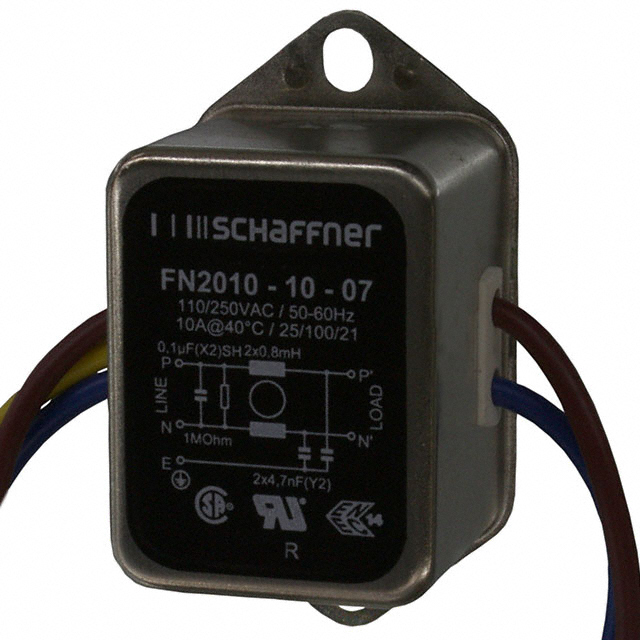

The Schaffner FN2010-10-07 is a single-phase EMI filter designed for chassis mounting with wire termination. It operates within a frequency range of 0 Hz to 400 Hz and supports voltage ratings of 230 VAC to 250 VAC. The component handles a current rating of 10 A to 11.5 A, featuring a capacitance value of 4.7 µF and an inductance of 1000 µH. Key electrical parameters include a leakage current between 0.38 mA and 0.66 mA, a resistance of 0.1 mΩ, and power loss of 0.8 W. Physical dimensions are 100 mm in length, 66 mm in width, and 66 mm in height.

Feature Summary

• Provides electromagnetic interference suppression for AC/DC power lines
• Utilizes a robust chassis mount design for secure installation
• Supports operation across standard and aviation frequencies up to 400 Hz

Applications

• Industrial control systems requiring EMI protection
• Avionics power distribution units
• Medical equipment power inputs

Procurement Notes

Verify the specific current and leakage current requirements against the datasheet values before procurement. Confirm that the wire termination style matches the system wiring infrastructure. Ensure the chassis mounting footprint aligns with the mechanical design constraints of the enclosure.

Selection Notes

Select this model when a single-phase filter with high capacitance is required for low-frequency noise attenuation. Consider the physical dimensions and wire termination method during the initial design phase. Evaluate the thermal performance based on the specified power loss at maximum operating temperatures.

Part Context

This component belongs to the FN2010 series of power line filters manufactured by Schaffner EMC Inc. The series is engineered for general-purpose AC/DC applications, offering reliable EMI suppression in compact form factors suitable for various industrial and commercial electronic systems.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers. Do not assume compatibility with other series without verifying electrical and mechanical specifications.
