Product Detailed Parameters
- Description：LINE FILTER 250VAC 12A CHASS MNT
- Series：FN 2010
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：12:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：700µH
Download product information
Overview

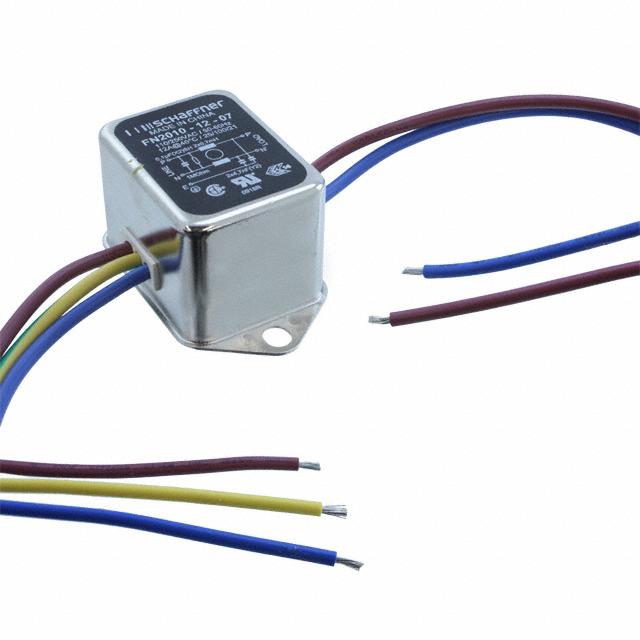

The Schaffner FN2010-12-07 is a single-phase EMI power line filter designed for chassis mounting. It supports a maximum current of 12A at 250VAC and operates within a frequency range of 0Hz to 400Hz. The component utilizes wire termination and features an LC topology with a capacitance of 100nF and inductance of 600μH. It has a leakage current of 0.74mA, a resistance of 1mΩ, and a power loss of 3.8W. The unit measures 85mm in length, 54mm in depth, and 30.3mm in height, functioning reliably between -25°C and +100°C.
Feature Summary
- Provides effective electromagnetic interference suppression through a two-stage LC filtering architecture.
- Engineered for secure mechanical integration using standard chassis mounting methods.
- Designed for reliable operation across a wide industrial temperature range.
Applications
- Power conditioning for medical equipment
- Industrial control systems
- General purpose electronic devices requiring EMI protection
Procurement Notes
Verify the specific part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the wire termination style matches the intended circuit design. Check for updated compliance certifications such as UL or CSA if required by regional regulations. Ensure the thermal environment remains within the specified operating temperature limits during installation.
Selection Notes
Select this model when a single-phase solution is required for currents up to 12A. Consider the physical dimensions and chassis mounting requirement during the layout phase. Evaluate the leakage current specifications against safety standards applicable to the end product. Compare the attenuation characteristics with other series models if higher performance is needed.
Part Context
This component belongs to the FN2010 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is widely recognized for providing robust EMI/RFI suppression in compact form factors suitable for various electronic applications.
FAQ
What is the termination type for the FN2010-12-07?
The FN2010-12-07 uses wire termination for electrical connections.
Does this filter support frequencies above 400Hz?
No, the operational frequency range is specified from 0Hz to 400Hz.
