FN2010-16-07

Overview

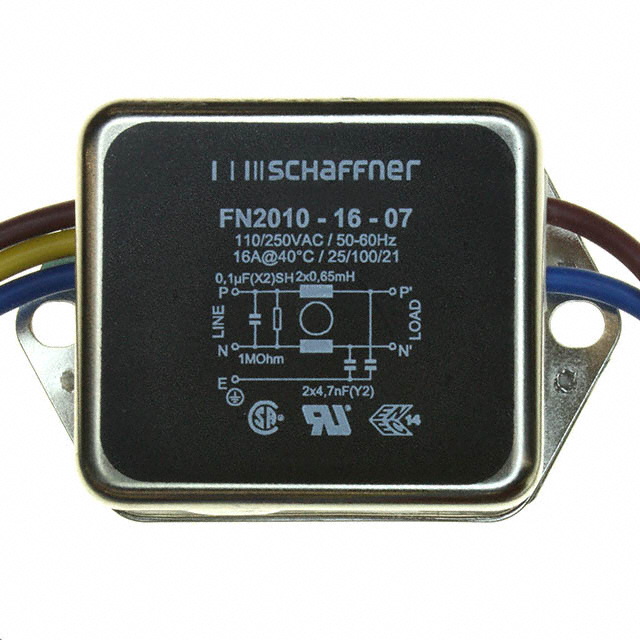

The Schaffner FN2010-16-07 is a single-phase EMI filter designed for general-purpose AC/DC applications. It supports rated currents up to 16 A with a maximum voltage of 250 V AC/DC and operates within a frequency range of 0 Hz to 400 Hz. Key electrical parameters include a capacitance value of 1000 nF, an inductance of 4.7 µH, and a leakage current of 0.1 mA. The unit features wire termination, chassis mounting, and operates between -25°C and +100°C.

Feature Summary

• Provides reliable electromagnetic interference filtering for general-purpose power lines
• Supports operation across standard DC and low-frequency AC ranges up to 400 Hz
• Utilizes wire termination for flexible integration into equipment assemblies

Applications

• General-purpose AC/DC power line filtering
• Industrial electronic equipment requiring EMI suppression
• Medical device power inputs (when configured per medical standards)

Procurement Notes

Verify the specific suffix code against official datasheets to confirm terminal type and certification status. Confirm that the 16 A rating aligns with system thermal requirements. Ensure chassis mounting provisions match the enclosure design. Cross-reference manufacturer documentation for any recent component updates or compliance changes.

Selection Notes

Select this model for applications requiring moderate current handling with low leakage current specifications. The 1000 nF capacitance offers significant noise attenuation for general interference. Consider the wire termination style for assembly compatibility. Evaluate thermal dissipation needs given the operating temperature range and power loss characteristics.

Part Context

This component belongs to the FN2010 series, which provides reliable filtering performance for general-purpose applications. The series covers rated currents from 1 to 60 A. The FN2010-16-07 represents a mid-range current option within this family, balancing filtering capability with physical size constraints for standard chassis installations.

Replacement Considerations

Consult official substitution guides for equivalent current ratings and termination styles. Verify that alternative components meet the same 250 V AC/DC rating and 400 Hz frequency support. Ensure mechanical dimensions and mounting hole patterns are compatible with existing chassis designs.
