FN2010-16-08

Overview

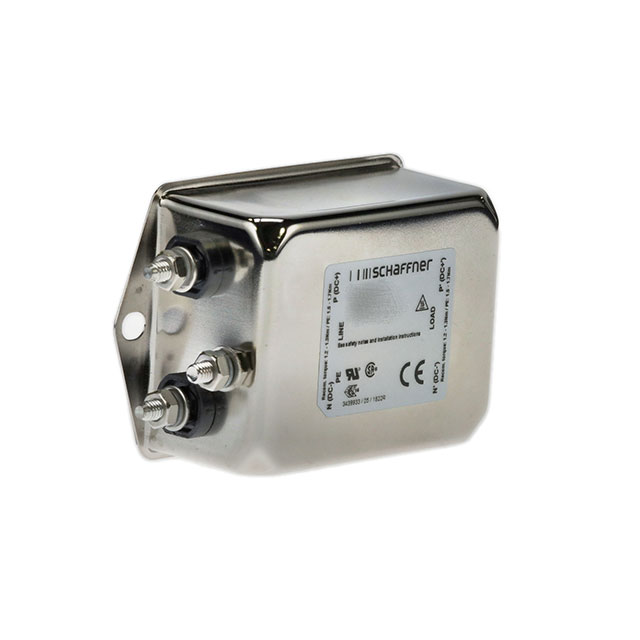

The Schaffner FN2010-16-08 is a single-phase EMI power line filter designed for chassis mounting. It supports a rated voltage of 250V AC/DC and handles a maximum current of 16A. The component utilizes bolt-type terminals for secure connection. Its electrical specifications include a capacitance value of 470nF and an inductance value of 870μH. The unit operates within a temperature range of -25°C to 100°C, with a leakage current of 0.87mA and a resistance of 1mΩ.

Feature Summary

• Single-stage filtering configuration for effective noise suppression
• Chassis mount design with bolt-type terminal connections
• Capable of handling high continuous current loads

Applications

• Industrial machinery power supply protection
• Medical equipment electromagnetic compatibility
• Information technology hardware interference reduction

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the required current rating and voltage specifications align with the system design requirements. Check for any specific certification needs relevant to the target application region before finalizing procurement decisions.

Selection Notes

Select this model when a single-phase solution with bolt-on installation is required. Ensure the operating environment stays within the specified thermal limits. Compare the inductance and capacitance values against other series options if space or performance constraints differ from standard chassis-mounted designs.

Part Context

This component belongs to the FN2010 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is widely recognized for providing reliable EMI suppression in various industrial and commercial applications requiring robust chassis-mount solutions.

Replacement Considerations

Consult official substitution guides for verified alternatives. Cross-referencing may involve checking equivalent models within the same series or compatible families from the manufacturer.
