FN2010-20-07

Overview

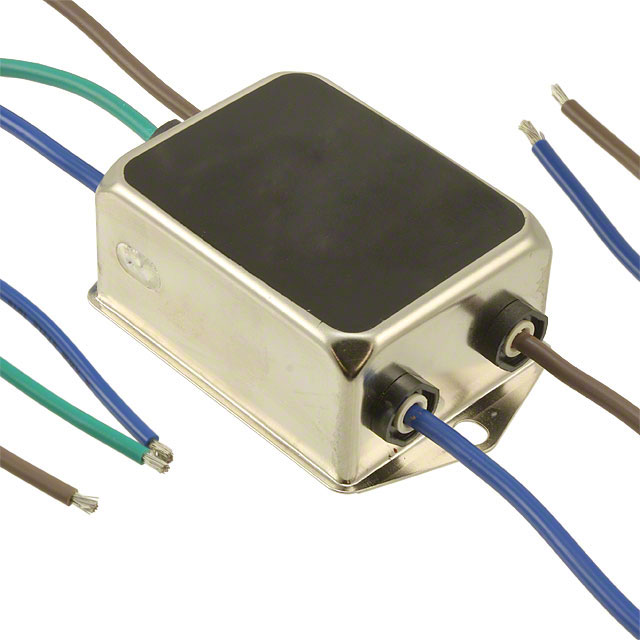

The Schaffner FN2010-20-07 is a single-phase EMI power line filter designed for chassis mounting. It supports a maximum current of 20 A and operates at voltages up to 250 V AC/DC within a frequency range of 0 Hz to 400 Hz. The component utilizes wire lead termination and features a capacitance value of 100 nF with an inductance of 600 μH. Physical dimensions are 85 mm in length, 54 mm in depth, and 30.3 mm in height. It exhibits a leakage current of 0.74 mA and a resistance of 1 mΩ. The unit functions reliably between -25°C and +100°C, with a power loss of 3.8 W.

Feature Summary

• Single-stage EMI filtering architecture for noise suppression
• Chassis mount design with wire lead connections
• Operational capability across 0 Hz to 400 Hz frequencies

Applications

• Computer equipment
• Medical devices
• General purpose industrial electronics

Procurement Notes

Verify the specific datasheet version for the FN2010-20-07 to confirm compliance certifications such as CSA, ENEC, or UR, as availability varies by region. Ensure the wire lead specifications match the target assembly requirements. Cross-reference the part number against TE Connectivity/Schaffner official documentation to validate performance parameters before integration into critical systems.

Selection Notes

Select this model when a single-phase filter rated for 20 A is required for chassis installation. The wire lead configuration distinguishes it from bolt-mount variants like the FN2010-20-06. Consider the 100 nF capacitance and 600 μH inductance values for appropriate attenuation characteristics in low-frequency applications up to 400 Hz.

Part Context

This component belongs to the FN2010 series of single-phase EMI filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series provides general-purpose noise suppression for power lines. The FN2010-20-07 variant specifically offers 20 A capacity with wire leads, differing from other series members that may utilize terminal blocks or different current ratings.

Replacement Considerations

The FN2010-20-06 serves as a similar chassis-mount alternative but uses quick-connect terminals instead of wire leads. Verify electrical compatibility and physical footprint differences when substituting.
