FN2010-20-08

Overview

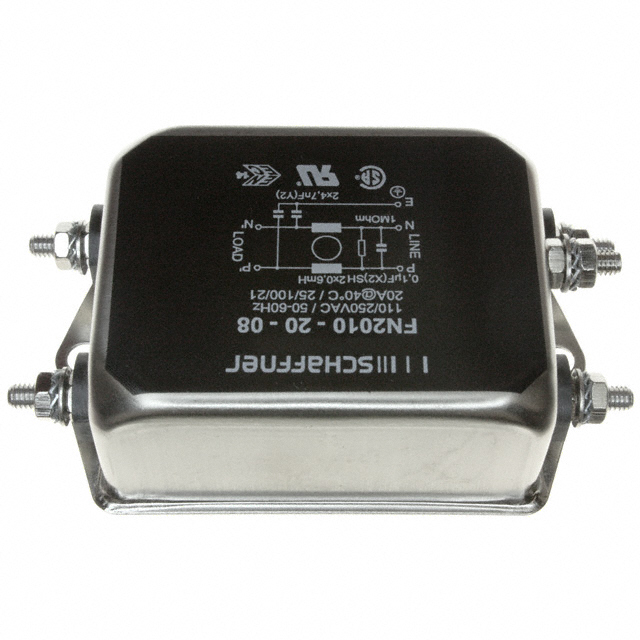

The FN2010-20-08 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Schaffner. It supports a rated voltage of 250VAC and a current capacity of 20A. Designed for chassis mounting, this component operates within a frequency range of DC to 400Hz. The unit features a single-stage configuration with threaded post termination (M4). It is housed in a metal case to ensure optimal earth connection and high-frequency performance.

Feature Summary

• Metal housing provides optimal earth connection and high-frequency noise attenuation
• Single-stage design for efficient EMI suppression
• Chassis mount installation with M4 threaded post terminals

Applications

• General purpose AC/DC power line filtering
• Industrial equipment noise suppression
• Medical device power input protection

Procurement Notes

Verify the specific pinout and terminal orientation against the official datasheet before integration. Confirm that the M4 threaded post requirements match your chassis mounting hardware. Ensure the operating environment remains within the specified temperature and voltage limits to maintain certification validity.

Selection Notes

Select this model for applications requiring a robust single-stage filter with high current handling. The metal case construction is suitable for environments demanding superior grounding and thermal dissipation. Verify compatibility with the system's input voltage and frequency specifications prior to procurement.

Part Context

This component belongs to the FN2010 series of general-purpose AC/DC EMI filters. The series is characterized by metal cases designed for optimum earth connection. These filters are engineered to provide space for circuit stages to attenuate noise effectively in various industrial and commercial power applications.

Replacement Considerations

Public confirmed substitute part numbers: 5500.2612.04 (SCHURTER Inc.), AMI-27B-6-1 (Altran Magnetics, LLC).
