FN2010-30-08

Overview

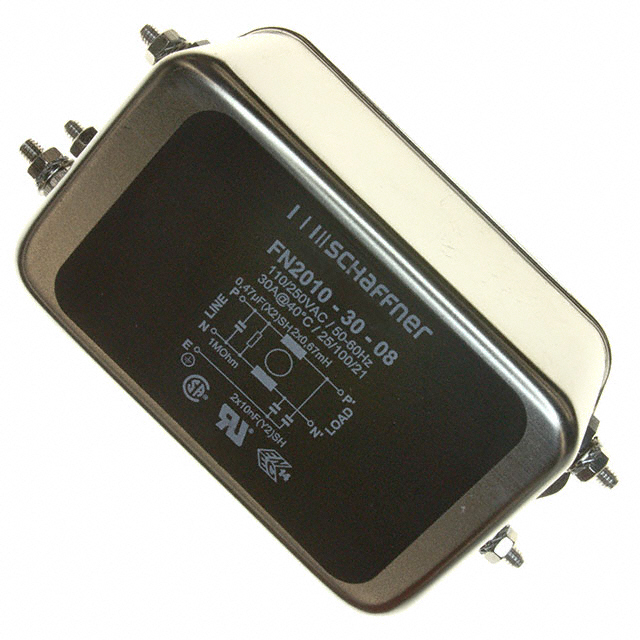

The Schaffner FN2010-30-08 is a single-phase EMI power line filter designed for chassis mounting with M4 bolt terminals. It supports a maximum current of 30 A and operates at voltages up to 250 V AC/DC within a frequency range of 0 Hz to 400 Hz. Key electrical parameters include a capacitance value of 470 nF, an inductance of 870 μH, and a leakage current of 0.87 mA. The unit features a low resistance of 1 mΩ and a power loss of 6.3 W. Physical dimensions are 113.5 mm in length, 57.5 mm in depth, and 45.4 mm in height. It functions reliably within an operating temperature range of -25°C to +100°C.

Feature Summary

• Single-stage filtering architecture for effective electromagnetic interference suppression
• Robust chassis-mount construction utilizing bolt-type terminal connections
• Optimized performance characteristics for operation across standard power frequencies

Applications

• Industrial machinery power supply conditioning
• Medical equipment noise reduction
• Test and measurement instrument protection

Procurement Notes

Verify the specific manufacturer designation, as TE Connectivity acquired Schaffner EMC Inc. Ensure the ordering suffix matches the required terminal configuration and voltage rating. Confirm that the component meets all necessary regulatory standards for the intended application region before finalizing procurement orders.

Selection Notes

Select this model based on the requirement for a 30 A rated single-phase filter with chassis mounting capabilities. Consider the physical dimensions and thermal management requirements associated with its 6.3 W power loss. Evaluate the leakage current specifications against safety standards applicable to the end-product design.

Part Context

This component belongs to the FN2010 series of power line filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series provides general-purpose EMI suppression solutions for various electronic applications requiring reliable noise filtration and compliance with international electromagnetic compatibility regulations.

Replacement Considerations

FN2030-30-08
