FN2010-6-07

Overview

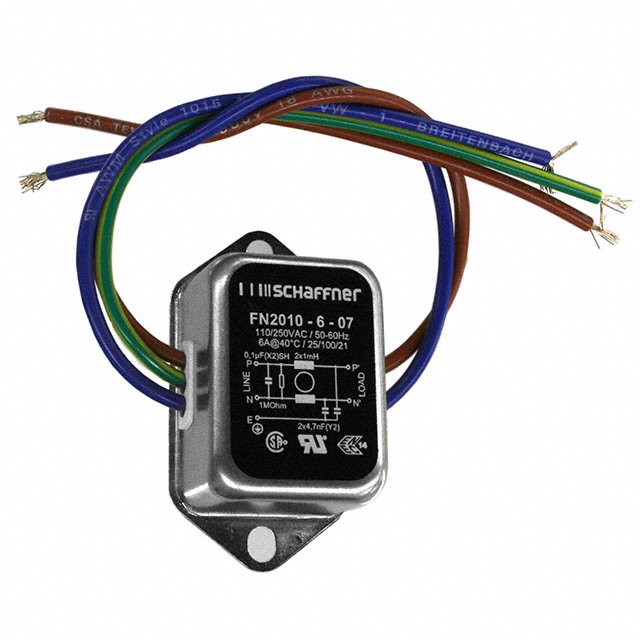

The Schaffner FN2010-6-07 is a single-phase EMI/EMC line filter designed for chassis mounting. It supports a rated voltage of 250V AC and handles a maximum current of 6A. The component operates within a frequency range of DC to 400Hz, making it suitable for aerospace and industrial applications. It features a single-stage configuration with wire lead termination. The unit measures 64mm in length, 35mm in depth, and 24.3mm in height. Operating temperatures range from -25°C to 100°C, with a power loss of 1.1W at rated conditions.

Feature Summary

• Single-stage electromagnetic interference suppression for single-phase circuits
• Chassis mount design with wire lead connections for secure installation
• Optimized performance for 400Hz aerospace and general industrial frequencies

Applications

• Aerospace electronic equipment power supplies
• Industrial control systems requiring EMI suppression
• Medical device power input stages
• General purpose AC/DC power filtering applications

Procurement Notes

Verify the specific suffix code against the manufacturer's official datasheet to confirm terminal type and electrical ratings. Ensure the chassis mounting footprint matches the physical dimensions provided in the technical documentation. Confirm that the operating environment temperature falls within the specified -25°C to 100°C range before finalizing procurement.

Selection Notes

Select this model when a single-phase filter is required for 6A loads at 250V AC. The 400Hz capability distinguishes it from standard 50/60Hz filters, making it appropriate for aircraft or specialized industrial power systems. Consider the chassis mounting requirement and wire lead termination style during system integration planning.

Part Context

This component belongs to the FN2010 series of single-phase EMI filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series provides compact filtering solutions for various power electronics applications. The FN2010-6-07 variant specifically addresses higher current requirements within the single-stage architecture family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Cross-referencing with similar Schaffner models such as FN2010-3-07 or FN2010-10-07 may be necessary if current ratings differ, but direct substitution requires verification against official compatibility data.
