FN2010-60-24

Overview

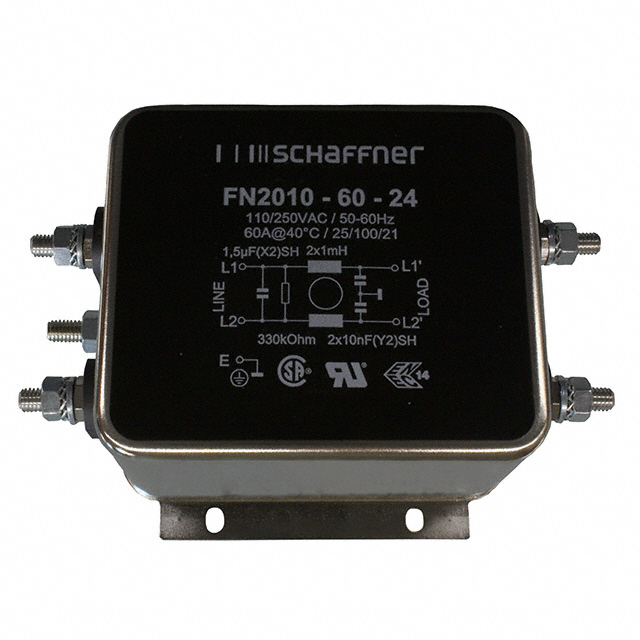

The Schaffner FN2010-60-24 is a single-phase EMI/RFI power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 60 A. The unit operates within a frequency range of 0 Hz to 400 Hz and has a maximum leakage current of 0.79 mA. It utilizes M6 screw terminal connections and functions reliably in temperatures from -25°C to +85°C. Certified by UL, CSA, and IEC/EN standards, this filter provides robust electromagnetic interference suppression for industrial applications.

Feature Summary

• Provides effective attenuation of high-frequency electromagnetic interference (EMI) to ensure stable equipment operation
• Designed with a compact form factor suitable for installation in electrical distribution systems with limited space
• Constructed for thermal stability and reliability across a wide operating temperature range

Applications

• Industrial automation and control systems requiring noise reduction for precision instruments
• Power and energy systems protecting sensitive equipment from grid disturbances
• Communication systems maintaining signal integrity by suppressing high-frequency interference

Procurement Notes

Verify the specific datasheet version for the FN2010-60-24 to confirm exact leakage current values and certification marks. Ensure that the M6 screw terminal interface matches your wiring infrastructure. Confirm compliance requirements such as UL or IEC/EN standards against your regional regulatory needs before finalizing procurement.

Selection Notes

Select the FN2010-60-24 when a single-phase filter with a 60 A capacity is required. This model is appropriate for systems operating at 250 VAC where chassis mounting is feasible. Consider the 0.79 mA leakage current limit if low-leakage performance is critical for safety or sensitivity. Verify that the 0 Hz to 400 Hz frequency range covers your application's operational spectrum.

Part Context

This component belongs to the Schaffner FN2010 series of power line filters. The series includes various models with different current ratings and terminal configurations, such as the FN2010-30-08 and FN2010-20-06. These filters are engineered for general-purpose AC/DC EMI suppression, offering consistent performance characteristics across the product family while varying in electrical specifications.

Replacement Considerations

Publicly confirmed substitute part numbers for the FN2010-60-24 were not identified in available documentation. Users should consult official Schaffner resources for potential cross-references or updated model designations.
