FN2010A-30-08

Overview

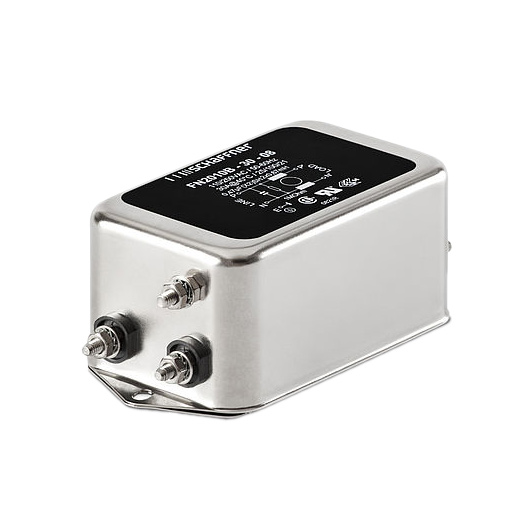

The Schaffner FN2010A-30-08 is a single-phase EMI power line filter rated for 30 A and 250 VAC/DC. It operates within a frequency range of 0 Hz to 400 Hz. Key electrical parameters include a capacitance of 470 nF, inductance of 870 μH, and leakage current of 0.87 mA. The unit features a chassis mount design with M4 screw terminals. Physical dimensions are 113.5 mm in length, 57.5 mm in depth, and 45.4 mm in height. It functions reliably between -25°C and +100°C, with a power loss of 6.3 W.

Feature Summary

• Single-stage noise suppression for electromagnetic interference
• Chassis mounting configuration for secure installation
• Safety-certified construction for electrical systems

Applications

• Industrial machinery power conditioning
• Medical equipment noise filtering
• Test and measurement instrumentation

Procurement Notes

Verify the specific datasheet version for the FN2010A-30-08 to confirm compliance with current safety standards such as UL, CSA, and IEC/EN. Ensure that the M4 screw terminal requirements match the system's grounding and connection infrastructure before procurement.

Selection Notes

Select this component when a single-phase filter is required for currents up to 30 A. The 470 nF capacitance and 870 μH inductance provide specific attenuation characteristics suitable for frequencies up to 400 Hz. Verify that the chassis mount form factor fits the available enclosure space.

Part Context

This part belongs to the FN2010 series of single-phase EMI filters manufactured by TE Connectivity / Schaffner. The series offers various current ratings and mounting options. The FN2010A-30-08 specifically denotes the 30 A variant with M4 screw terminals and chassis mounting capabilities.

Replacement Considerations

The FN2030-30-08 is a documented substitute within the same manufacturer portfolio. Both parts share similar current and voltage ratings but differ in physical dimensions and internal component values.
