FN2010B-30-08

Overview

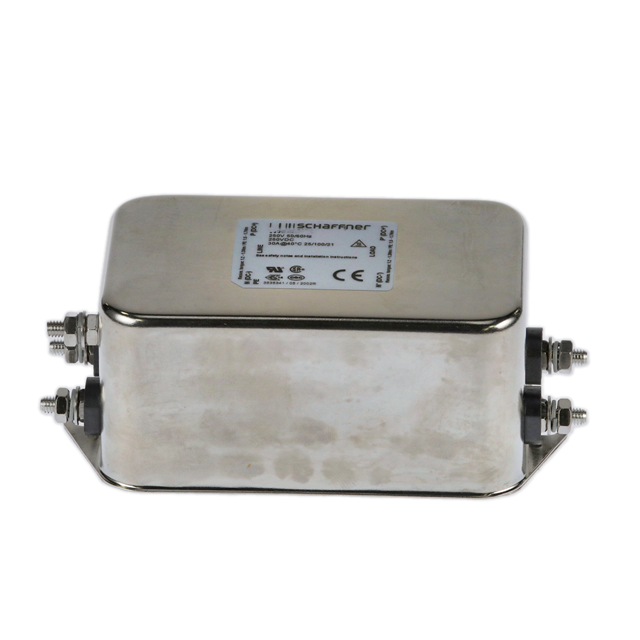

The Schaffner FN2010B-30-08 is a single-phase EMI power line filter designed for chassis mounting with bolt-type terminals. It supports a maximum current of 30A and operates at voltages up to 250V AC/DC across a frequency range of 0Hz to 400Hz. Key electrical parameters include a capacitance value of 470nF, an inductance of 870μH, and a leakage current of 0.87mA. The unit has a low resistance of 1mΩ and power loss of 6.3W. Physical dimensions are 113.5mm in length, 57.5mm in depth, and 45.4mm in height. It functions within a temperature range of -25°C to 100°C.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Utilizes bolt-type terminal connections for secure chassis installation
• Operates effectively across a wide frequency spectrum from DC to 400Hz

Applications

• Industrial equipment requiring EMI filtering
• General purpose applications operating at 400Hz
• Medical device power supplies

Procurement Notes

Verify the specific part number FN2010B-30-08 against official Schaffner documentation to confirm compatibility with your system's voltage, current, and mounting requirements. Ensure that the bolt-type terminal configuration matches your assembly hardware. Cross-reference technical specifications such as capacitance and inductance values with your design constraints before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase filter capable of handling 30A continuous current is required. The bolt-mount style is suitable for robust industrial environments where vibration resistance is necessary. Consider the physical dimensions and thermal characteristics, including the specified operating temperature range and power loss, to ensure proper integration into the enclosure design.

Part Context

This component belongs to the FN2010B series of power line filters manufactured by Schaffner EMC Inc. The series is characterized by its suitability for medical and general-purpose applications, offering reliable performance in suppressing conducted emissions. The FN2010B-30-08 variant specifically addresses high-current needs within this product family.

Replacement Considerations

Consult official Schaffner substitution guides or datasheets for verified alternative part numbers. Do not assume cross-compatibility with other manufacturers' filters without verifying electrical parameters and mechanical fit.
