FN2010B-6-07

Overview

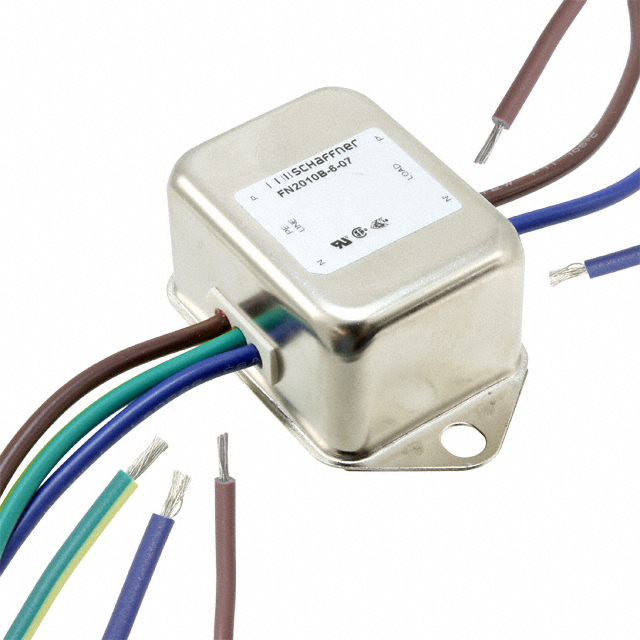

The Schaffner FN2010B-6-07 is a single-phase EMI power line filter designed for chassis mounting. It features a rated current of 6 A and a voltage rating of 250 VAC. The unit utilizes quick-connect terminals for electrical termination and incorporates internal fusing for safety compliance. Designed for operation within an ambient temperature range of -25°C to +100°C, this component belongs to the FN2010B series and is constructed for robust electromagnetic interference suppression in industrial environments.

Feature Summary

• Integrated fuse protection for enhanced circuit safety
• Chassis mount design with quick-connect terminal configuration
• Single-stage filtering architecture for single-phase applications

Applications

• Industrial machinery power input stages
• Medical equipment power entry modules
• Automotive test and measurement systems

Procurement Notes

Verify the specific suffix code against official datasheets to confirm terminal type and fuse ratings. Confirm chassis mounting hole dimensions and clearance requirements prior to integration. Ensure the operating environment temperature remains within the specified limits to maintain performance integrity and safety certifications.

Selection Notes

Select this model when a fused, single-phase EMI filter with quick-connect terminals is required. Verify that the system current does not exceed the 6 A rating. Consider the physical dimensions and chassis mounting style during mechanical design. Compare leakage current specifications if patient contact or sensitive analog circuits are present.

Part Context

This component is part of the Schaffner FN2010B series, which provides general-purpose EMI filtering solutions. The series offers various current ratings and terminal configurations to suit different power entry requirements. These filters are engineered to meet international EMC standards for conducted emissions reduction in electronic equipment.

Replacement Considerations

Cross-reference with other FN2010B variants for different current ratings or terminal styles. Verify compatibility with existing PCB layouts or wiring harnesses before substitution.
