FN2010N-30-08

Overview

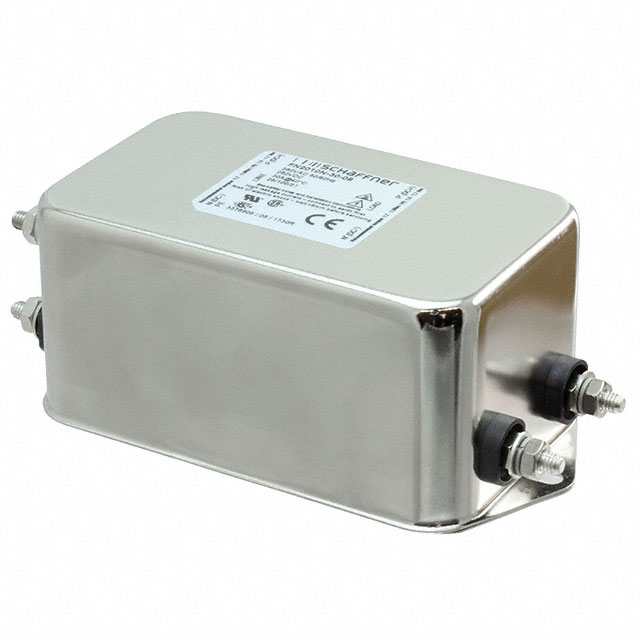

The Schaffner FN2010N-30-08 is a single-phase EMI power line filter designed for chassis mounting. It supports a maximum current of 30A and operates at voltages up to 250V AC/DC within a frequency range of 0Hz to 400Hz. Key electrical parameters include a capacitance value of 470nF, an inductance of 870μH, and a leakage current of 0.87mA. The unit features bolt-type terminals and has physical dimensions of 113.5mm in length, 57.5mm in depth, and 45.4mm in height. It functions reliably between -25°C and +100°C with a power loss of 6.3W.

Feature Summary

• Single-stage filtering architecture for effective noise suppression
• Chassis mount design with bolt-type terminal connections
• Operational capability across 0Hz to 400Hz frequency spectrum

Applications

• Industrial equipment power supply protection
• Medical device electromagnetic compatibility compliance
• Information technology hardware interference reduction

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure accuracy. Confirm that the required voltage rating, current capacity, and terminal type match your system specifications. Check for relevant regulatory certifications such as UL or IEC if mandated by your application standards. Ensure proper chassis mounting provisions are available for secure installation.

Selection Notes

Select this component when a single-phase solution is required for frequencies up to 400Hz. Consider the 30A current rating and 250V voltage limit to ensure adequate headroom. Evaluate the chassis mounting style and bolt terminals against available panel space and wiring constraints. Verify thermal management requirements given the specified power loss characteristics.

Part Context

This component belongs to the FN2010 series of EMI filters manufactured by Schaffner EMC Inc. The series is engineered for power line applications requiring robust noise attenuation. The FN2010N-30-08 variant specifically addresses single-phase needs with defined electrical ratings and mechanical form factors suitable for industrial integration.

Replacement Considerations

Consult official substitution lists from Schaffner EMC Inc. for verified alternatives. Cross-reference technical specifications including current, voltage, and capacitance values before considering other manufacturers' products.
