FN2010N-60-24

Overview

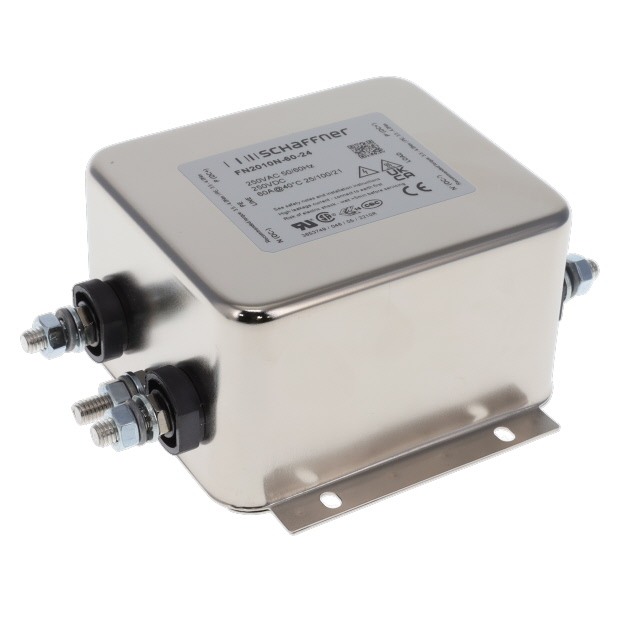

The FN2010N-60-24 is a single-phase EMI/EMC power line filter manufactured by Schaffner EMC Inc. It features a rated current of 60 A and operates at voltages up to 250 V AC or DC, with frequency support from 0 Hz to 400 Hz. The unit utilizes M6 threaded post terminals for secure connection and is designed for chassis mounting. Key electrical parameters include a leakage current range of 4.52 mA to 7.85 mA and a maximum power loss of 3.8 W. The component is engineered to suppress electromagnetic interference in industrial and commercial power distribution systems.

Feature Summary

• Provides effective suppression of electromagnetic interference (EMI) and radio frequency interference (RFI) in single-phase power circuits.
• Designed for robust performance in environments requiring high current handling capabilities up to 60 A.
• Constructed with durable materials suitable for chassis mounting applications.

Applications

• Industrial automation control panels
• Commercial power distribution units
• Medical equipment power supplies

Procurement Notes

Verify the specific suffix 'N' and terminal type '24' against the official Schaffner datasheet to ensure compatibility with existing M6 threaded post requirements. Confirm that the 60 A rating aligns with the system's continuous load needs. Check for any regional compliance certifications required for the target installation environment before finalizing procurement.

Selection Notes

Select this model when a single-phase filter with a 60 A capacity is required for chassis-mounted installations. Ensure the application voltage does not exceed 250 V AC/DC. Consider the physical dimensions and M6 terminal spacing during mechanical design integration. Verify that the leakage current specifications meet safety standards for the intended end-use equipment.

Part Context

This component belongs to the FN2010 series of general-purpose EMI filters produced by Schaffner. The series is known for providing reliable noise attenuation in various power electronics applications. The FN2010N-60-24 variant specifically addresses high-current single-phase requirements using a threaded post termination style distinct from screw terminal or quick-connect alternatives within the broader product family.

Replacement Considerations

Consult the manufacturer's cross-reference guide for direct substitutes. Ensure any replacement maintains the 60 A current rating, 250 V voltage rating, and M6 threaded post terminal configuration to preserve mechanical and electrical compatibility.
