FN2020-1-06

Overview

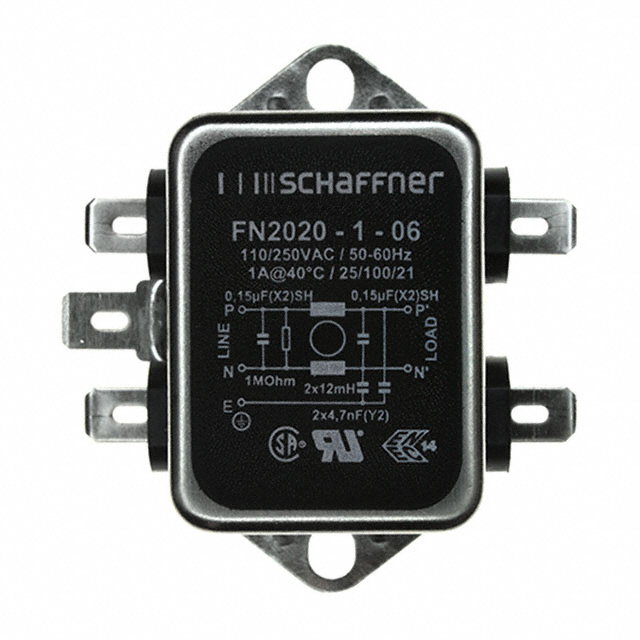

The Schaffner FN2020-1-06 is a single-phase power line filter module designed for chassis mounting. It operates at a rated AC voltage of 250V and supports a current of 1A within a frequency range of DC to 400Hz. The unit features high differential-mode attenuation and utilizes 6.3mm Faston terminals for connection. It functions effectively in temperatures ranging from -25°C to 100°C.

Feature Summary

• High differential-mode attenuation for effective noise suppression
• Faston terminals facilitate quick and easy electrical connections
• Chassis mounting design allows for secure installation

Applications

• General purpose EMI/RFI filtering
• Single-phase equipment protection
• Chassis-mounted electronic assemblies

Procurement Notes

Verify the specific current rating and terminal configuration against your system requirements before procurement. Confirm that the operating temperature range meets your environmental conditions. Ensure compatibility with the 6.3mm Faston connector type used in your assembly. Check for required certifications such as CSA, ENEC, or UR depending on your target market regulations.

Selection Notes

Select this component when a single-phase filter with 1A capacity is required for chassis integration. Consider the 250VAC rating and DC to 400Hz frequency range for suitability. Evaluate the need for high differential-mode attenuation in your specific application environment. Verify that the physical dimensions and mounting style fit your enclosure constraints.

Part Context

This model belongs to the FN2020 series of power line filter modules manufactured by Schaffner EMC Inc. The series is characterized by its compact chassis-mount form factor and general-purpose EMI filtering capabilities. It serves as a solution for reducing conducted interference in single-phase AC power lines across various industrial and commercial applications.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers. Ensure any replacement matches the 1A current rating, 250VAC voltage, and 6.3mm terminal interface. Verify that alternative components offer equivalent attenuation characteristics and certification approvals.
