FN2020-1-07

Overview

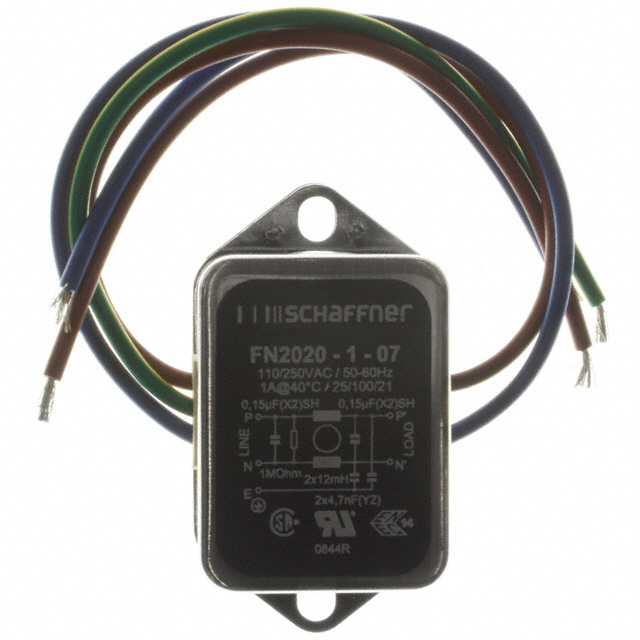

The FN2020-1-07 is a single-phase EMC/EMI line filter module manufactured by TE Connectivity Schaffner. It is designed for chassis mounting and supports a current rating of 1 A with a voltage rating of 250 VAC. The component operates within a frequency range up to 400 Hz and utilizes wire leads for connection. This filter provides essential noise suppression for power lines in sensitive electronic applications.

Feature Summary

• Single-phase EMI/RFI filtering capability
• Chassis mount installation type
• Wire lead termination

Applications

• Power line noise suppression
• Electronic equipment input stages
• Industrial control systems

Procurement Notes

Verify the manufacturer part number FN2020-1-07 against official TE Connectivity Schaffner documentation to confirm specifications. Ensure compatibility with system voltage and current requirements before procurement. Check for RoHS compliance status if required by project standards.

Selection Notes

Select this component for applications requiring single-phase power line filtering at 1 A. Consider chassis mounting constraints and wire lead availability. Verify that the operating frequency range up to 400 Hz meets system needs. Compare with other Schaffner series filters for specific attenuation requirements.

Part Context

This component belongs to the Schaffner Power Line Filter Modules series, designed for electromagnetic interference suppression in AC power circuits. The FN2020 series typically offers compact solutions for industrial and commercial electronics requiring reliable noise reduction on single-phase lines.

FAQ

What is the maximum operating voltage for the FN2020-1-07?

The maximum rated voltage is 250 VAC.

How is the FN2020-1-07 installed?

It is designed for chassis mounting.
