FN2020-10-06

Overview

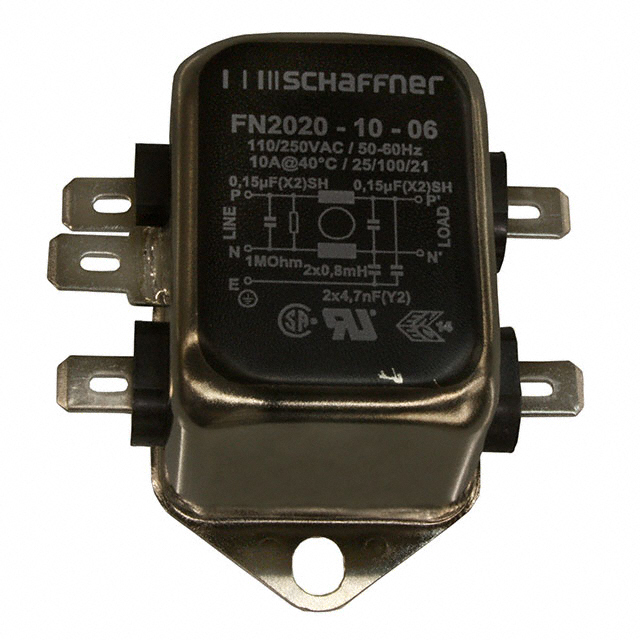

The FN2020-10-06 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Schaffner. It features a rated current of 10 A and operates at AC voltages up to 250 V within a frequency range of DC to 400 Hz. The component utilizes quick connect terminals for termination and is designed for chassis mounting. This general-purpose filter provides high differential-mode attenuation.

Feature Summary

• Provides high differential-mode attenuation for electromagnetic interference suppression
• Designed for easy and fast chassis mounting installation
• Utilizes quick connect terminal interfaces for circuit integration

Applications

• Power supplies
• Battery chargers
• Portable devices

Procurement Notes

Verify the manufacturer designation as TE Connectivity Schaffner, as corporate structures have evolved. Confirm the specific part number FN2020-10-06 against official datasheets to ensure correct specifications. Check for product change notifications or end-of-life status prior to procurement decisions.

Selection Notes

Select this component for applications requiring single-phase EMI filtering with a 10 A capacity. Ensure the operating voltage does not exceed 250 VAC and the frequency range includes DC to 400 Hz. Verify that chassis mounting and quick connect termination methods align with the system design requirements.

Part Context

This component belongs to the FN2020 series of standard high-performance single-phase filters from Schaffner. The series is characterized by general-purpose EMI filtering capabilities suitable for various electronic equipment requiring reliable power line noise suppression.

Replacement Considerations

Consult official documentation for confirmed substitute part numbers. Cross-referencing should be performed carefully to ensure compatibility with voltage, current, and mounting constraints.
