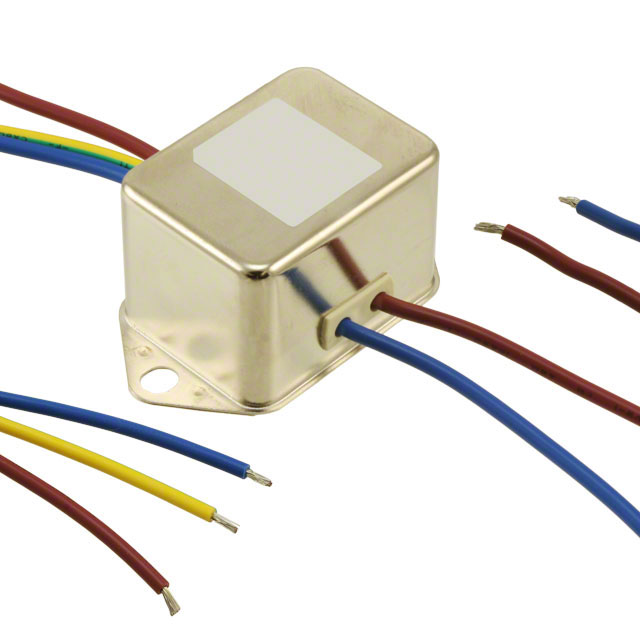

FN2020-10-07

$19.86

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：FN 2020
Mfr：Schaffner EMC Inc.
Package：Box

SKU:7ca008c63436 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 10A CHASS MNT
Series：FN 2020
Mfr：Schaffner EMC Inc.
Package：Box
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：10:00 AM
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Wire Leads
Inductance：800µH

Download product information

FN2020-10-07

Overview

The Schaffner EMC Inc. FN2020-10-07 is a single-phase EMC/EMI power line filter designed for chassis mounting. It supports a rated current of 10 A and operates at AC voltages up to 250 V. The component functions within a frequency range of DC to 400 Hz and utilizes a single-stage configuration. Termination is achieved via wire leads, ensuring secure electrical connections. This filter is certified by CSA, ENEC, and UR, indicating compliance with international safety standards.

Feature Summary

Single-phase electromagnetic interference suppression
Chassis mount installation type
Wire lead termination style

Applications

Power supply units
Battery chargers
Portable devices

Procurement Notes

Verify the specific datasheet version for the FN2020-10-07 to confirm exact dimensional tolerances and terminal specifications. Ensure that the receiving facility has appropriate chassis mounting hardware compatible with the filter's physical footprint. Cross-reference certification marks such as CSA, ENEC, and UR against target market regulatory requirements before finalizing procurement orders.

Selection Notes

Select this component when a single-stage filtering solution is sufficient for the application's noise profile. The 10 A current rating dictates suitability for moderate power loads. Verify that the operating environment remains within the specified temperature limits. Confirm that wire lead termination aligns with the internal wiring harness design rather than requiring panel-mount terminals.

Part Context

This model belongs to the FN 2020 series of AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series provides single-phase filtering solutions for various industrial and commercial applications. The FN2020-10-07 specifically denotes the 10 A variant within this lineup, sharing common design principles with other current ratings in the same family.
