FN2020-12-06

Overview

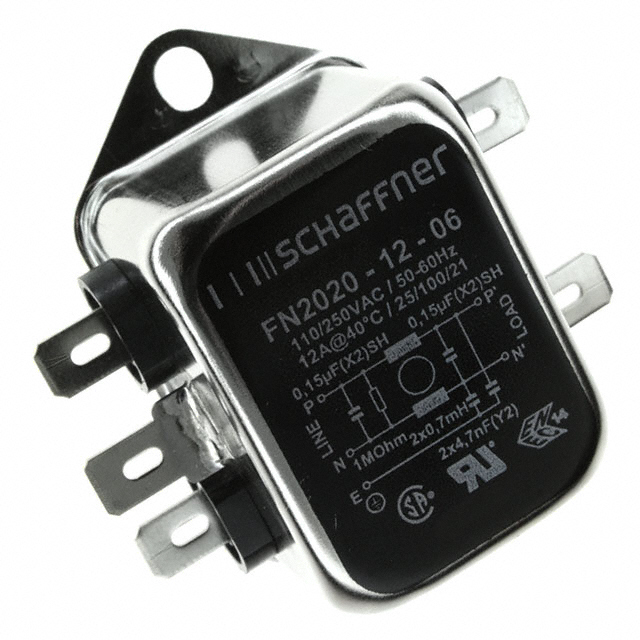

The FN2020-12-06 is a single-phase EMC/EMI power line filter manufactured by Schaffner EMC Inc. It features a chassis mount design with quick connect termination style. The component operates within a frequency range of DC to 400Hz and has a rated voltage of 250V AC. It supports a current rating of 12A. The filter utilizes a single-stage configuration and includes an inductance value of 970µH. It is designed for safety applications and complies with RoHS3 standards.

Feature Summary

• Provides electromagnetic interference suppression for single-phase power lines
• Features a robust chassis mount construction for secure installation
• Utilizes quick connect terminals for simplified wiring integration

Applications

• Safety-critical electronic equipment requiring EMI filtering
• Industrial machinery operating at frequencies up to 400Hz
• Power supply input stages for general purpose electronics

Procurement Notes

Verify the specific part number FN2020-12-06 against official Schaffner documentation to confirm compatibility with your system requirements. Ensure that the mounting type, terminal style, and electrical ratings match your design specifications before procurement. Cross-reference certification marks such as CE, CSA, and UR if required for your region. Confirm lead times and availability through authorized distributors.

Selection Notes

Select this component when a single-stage, single-phase filter is required for chassis-mounted applications. Consider the 12A current rating and 250V AC voltage limit to ensure adequate headroom for your load. The quick connect termination style should align with your PCB or wire harness design. Verify that the operating temperature range of -25°C to 100°C suits your environmental conditions.

Part Context

This component belongs to the FN2020 series of single-phase AC/DC chassis filters from Schaffner. The series is designed for general-purpose EMI/EMC suppression in various electronic systems. The FN2020-12-06 variant specifically offers 12A capacity with a single-stage filtering architecture, distinguishing it from higher-capacity or multi-stage models within the same family.

Replacement Considerations

No public confirmed substitute part numbers are available for this specific model.
