FN2020-16-06

Overview

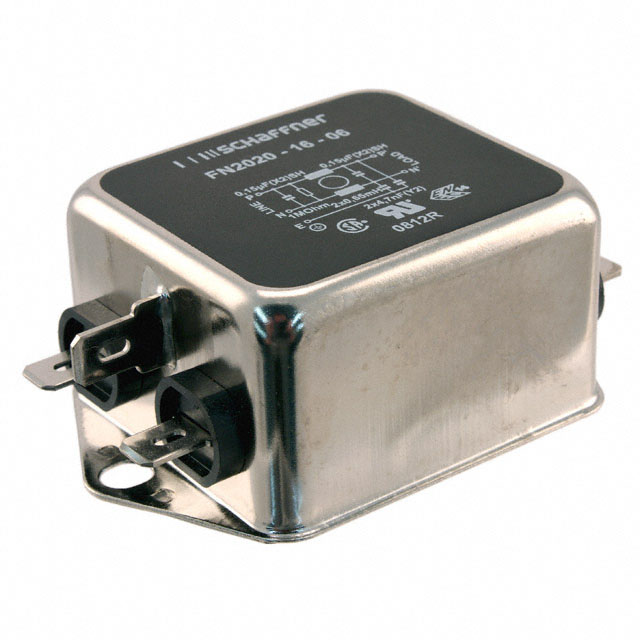

The Schaffner FN2020-16-06 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a rated current of 16 A and operates within an AC voltage range of 110V to 250V at frequencies from DC to 400Hz. The component utilizes a single-stage configuration with quick-connect terminals for input and output. Maximum leakage current is specified at 0.38 mA under 120VAC, 60Hz conditions. It supports a wide operating temperature range from -25°C to 100°C.

Feature Summary

• Single-stage filtering architecture for efficient noise suppression
• Quick-connect termination style for simplified assembly
• Chassis mount installation type for secure integration

Applications

• General industrial equipment power conditioning
• Medical device power supply filtering
• Information technology hardware EMI reduction

Procurement Notes

Verify the specific terminal pitch and mounting hole dimensions against your chassis design before ordering. Confirm that the 16A continuous current rating aligns with your system's peak load requirements. Ensure the quick-connect tab size matches your wiring harness connectors to prevent mechanical failure during operation.

Selection Notes

Select this model when a single-stage solution is sufficient for your electromagnetic interference mitigation needs. The 16A rating makes it suitable for moderate-power applications where space constraints preclude larger multi-stage units. Consider the quick-connect interface if rapid manufacturing assembly is a priority over soldered connections.

Part Context

This component belongs to the FN2020 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series is engineered for general-purpose EMC compliance in various electronic systems. The FN2020-16-06 variant specifically denotes the 16A current capacity and standard terminal configuration within this product family.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative models by comparing electrical ratings, physical dimensions, and certification approvals such as UL or CSA.
