FN2020-16-07

Overview

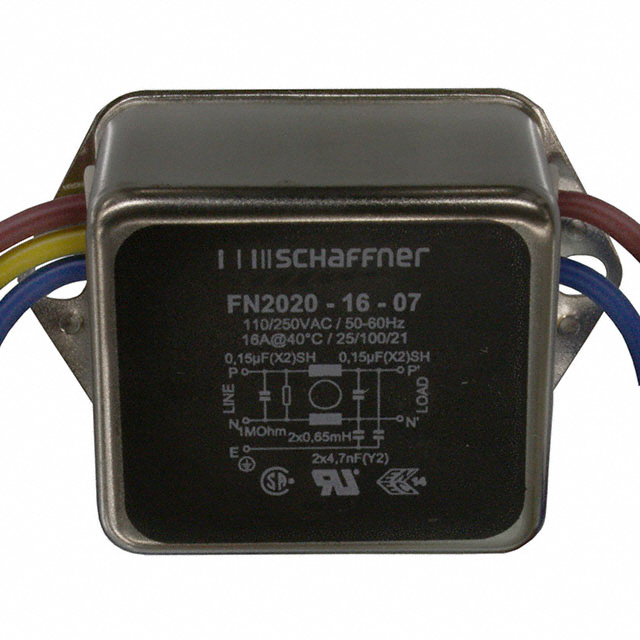

The Schaffner FN2020-16-07 is a single-phase EMC/EMI line filter designed for chassis mounting. It supports a rated current of 16 A and operates within an AC voltage range of 110V to 250V. The component functions at frequencies from DC to 400Hz and features a single-stage configuration with wire lead termination. It is certified by CSA, ENEC, and UR agencies.

Feature Summary

• Single-stage electromagnetic interference suppression
• Chassis mount installation with wire leads
• Certified for international safety standards

Applications

• Industrial equipment power input filtering
• Medical device power supply protection
• General purpose AC power line noise reduction

Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm terminal style and certification requirements. Ensure the operating environment temperature falls within the specified range. Confirm that the wire lead length meets the system integration constraints before finalizing the order.

Selection Notes

Select this model when a single-stage filter is sufficient for the required attenuation levels. The 16 A rating suits moderate power applications. Verify that the wire lead termination type matches the available connection points in the design. Check that the physical dimensions fit the chassis enclosure space.

Part Context

This component belongs to the FN2020 series of single-phase AC/DC chassis filters manufactured by TE Connectivity Schaffner. The series provides standardized EMC solutions for various industrial and commercial applications requiring reliable noise suppression on power lines.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material.
