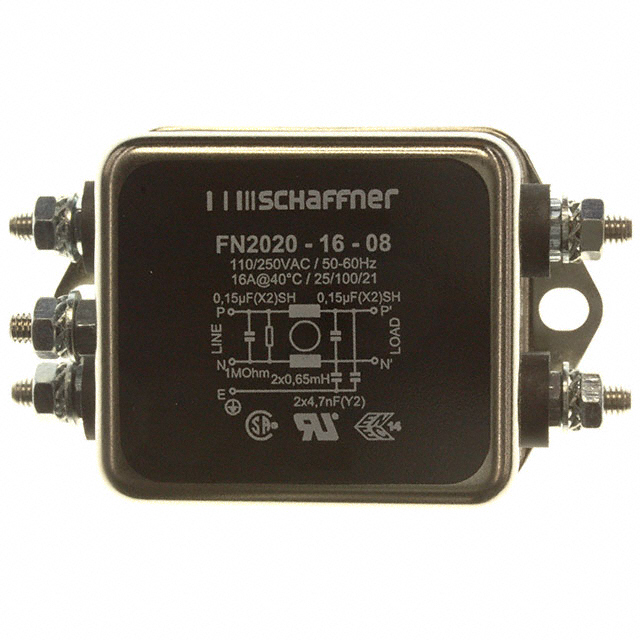

FN2020-16-08

$27.81

Description：LINE FILTER 250VAC 16A CHASS MNT
Series：FN 2020
Mfr：Schaffner EMC Inc.
Package：Tray

SKU:70b4a65c1e85 Category: Power Line Filter Modules Brand: Schaffner EMC Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 250VAC 16A CHASS MNT
Series：FN 2020
Mfr：Schaffner EMC Inc.
Package：Tray
Filter Type：Single Phase
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：250V
Current：16 A
Frequency - Operating：DC ~ 400Hz
Applications：General Purpose
Approval Agency：CSA, ENEC, UR
Operating Temperature：-25°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M4)
Inductance：650µH

Download product information

FN2020-16-08

Overview

The FN2020-16-08 is a single-phase power line filter module manufactured by Schaffner EMC Inc. It is designed for chassis mounting and supports an operating frequency range of 0 Hz to 400 Hz. The component handles a current rating of 16 A with a voltage rating of 250 VAC. Key electrical specifications include a leakage current of 660 uA. This unit belongs to the FN2020 series and is intended for general-purpose electromagnetic interference suppression in AC power applications.

Feature Summary

Chassis mount design for secure installation
Single-phase EMI filtering capability
RoHS compliant construction

Applications

General purpose power supplies
Battery chargers
Energy-efficient systems

Procurement Notes

Verify that the specific order matches the FN2020-16-08 part number exactly, as suffixes may indicate different ratings or certifications. Confirm RoHS compliance status if required by your manufacturing standards. Ensure the chassis mounting style fits your enclosure design constraints before procurement.

Selection Notes

Select this model when a 16 A single-phase filter is required for chassis mounting. Verify that the 250 VAC rating meets your system's voltage requirements. Consider the 660 uA leakage current specification for safety-sensitive applications. Ensure the 0 Hz to 400 Hz frequency range aligns with your input power source characteristics.

Part Context

This component is part of the Schaffner FN2020 series of power line filter modules. These filters are engineered for electromagnetic compatibility in AC power lines. The series offers various current ratings and configurations to suit different industrial and commercial equipment needs.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers within the FN2020 series or other compatible families. Do not assume cross-compatibility based on similar ratings alone.
