FN2020-20-06

Overview

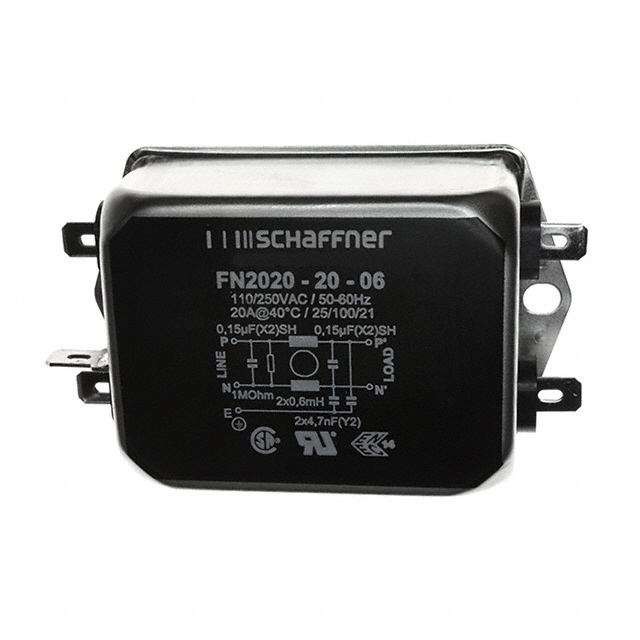

The Schaffner FN2020-20-06 is a single-phase EMC/EMI power line filter designed for chassis mounting. It features a metal case to ensure optimum earth connection and high-frequency performance. The unit supports a current rating of 20 A at AC voltages up to 250 V. Operating within a frequency range of DC to 400 Hz, it utilizes faston quick-connect terminals for input and output termination. The design allows space for circuit stages to attenuate noise effectively.

Feature Summary

• Metal housing provides robust earth connection and enhanced high-frequency attenuation capabilities
• Single-stage configuration optimized for general-purpose industrial electromagnetic interference suppression
• Quick-connect terminal style facilitates rapid installation and secure electrical interfacing

Applications

• General-purpose industrial equipment protection
• Power supply input filtering
• Electronic device noise attenuation

Procurement Notes

Verify the specific voltage and current ratings against your system requirements before ordering. Confirm that the faston terminal dimensions match your PCB or wire harness connectors. Ensure the chassis mounting holes align with your enclosure design. Check for RoHS compliance status if required by your manufacturing standards. Review the datasheet for leakage current specifications relevant to safety regulations.

Selection Notes

Select this model when a single-phase filter with a 20 A capacity is required. Consider the metal case construction for superior grounding compared to plastic alternatives. Evaluate the physical dimensions to ensure fit within the available chassis space. Verify that the operating temperature range meets environmental conditions. Compare attenuation characteristics against other series models if higher performance is needed.

Part Context

This component belongs to the FN2020 series of single-phase filters from Schaffner. These units are characterized by their metal cases and suitability for chassis mounting. The series is widely used in industrial applications requiring reliable EMI suppression. The FN2020-20-06 specifically denotes the 20 A current variant within this lineup.

Replacement Considerations

Public confirmed substitute part numbers: None identified.
