Product Detailed Parameters
- Description：LINE FILTER 250VAC 6A CHASS MNT
- Series：FN 2020
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：1mH
Download product information
Overview

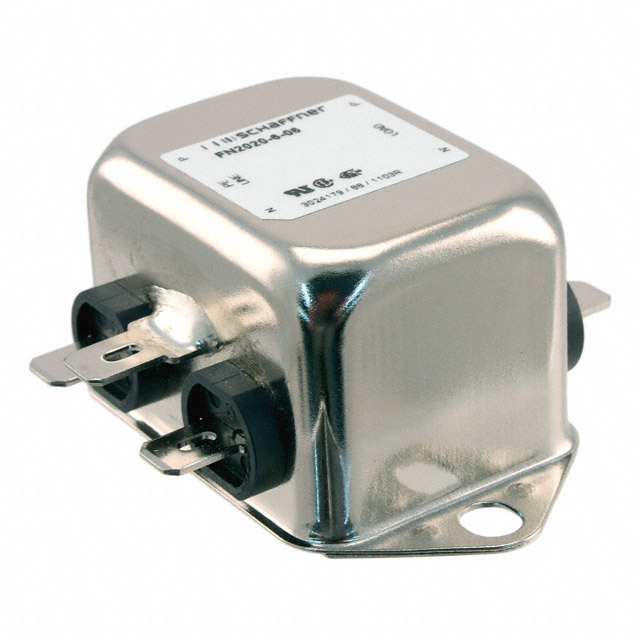

The Schaffner FN2020-6-06 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates within a frequency range of DC to 400Hz and supports an AC voltage rating of 250V with a current capacity of 6A. The unit features a single-stage configuration utilizing quick-connect terminals for circuit attachment. Certified by UL, CSA, CQC, and ENEC, it ensures compliance with international safety standards.
Feature Summary
- Single-stage filtering architecture for efficient noise suppression
- Chassis mount design for secure mechanical integration
- Quick-connect terminal style for simplified wiring
- Global certification coverage including UL, CSA, and CQC
Applications
- Industrial power supply units
- Medical equipment power inputs
- Office automation devices
- Renewable energy inverters
Procurement Notes
Verify the specific suffix codes against official datasheets to confirm terminal type and voltage ratings. Ensure chassis mounting holes align with panel specifications. Confirm RoHS3 compliance status if required by project regulations. Cross-reference certification marks with target market requirements before finalizing procurement orders.
Selection Notes
Select this component when single-stage attenuation is sufficient for the application's EMI profile. Verify that the 6A current rating accommodates peak load demands. Ensure the chassis mounting style fits the enclosure design constraints. Check that the operating temperature range meets environmental conditions.
Part Context
This model belongs to the FN2020 series of single-phase AC/DC filters from Schaffner. These components are engineered for general-purpose noise suppression in electronic equipment. The series emphasizes compact form factors suitable for various industrial and commercial applications requiring reliable EMI performance.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for direct equivalents or pin-compatible alternatives.
