Product Detailed Parameters
- Description：LINE FILTER 250VAC 60A CHASS MNT
- Series：FN 2020
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：60 A
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Threaded Post (M6)
- Inductance：1mH
Download product information
Overview

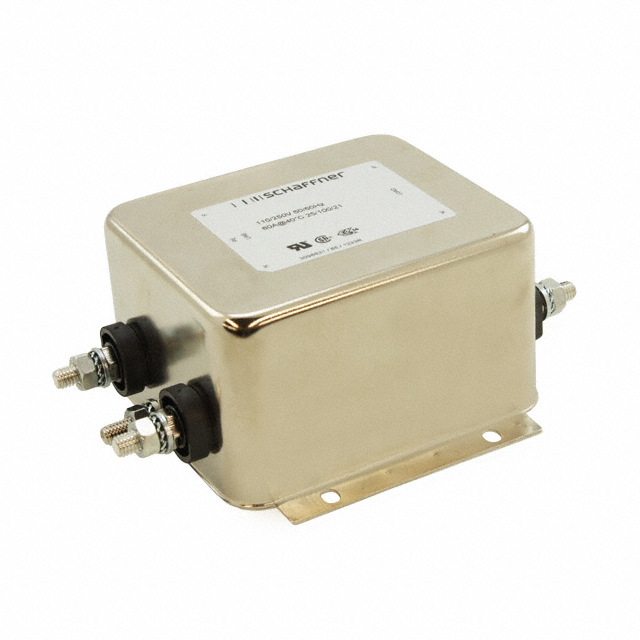

The Schaffner FN2020-60-24 is a single-phase EMC/EMI line filter designed for chassis mounting. It features a current rating of 60 A and operates within a voltage range of 250 VAC DC to 400 Hz. The component utilizes threaded post (M6) termination for both input and output connections. This single-stage filter is engineered for general-purpose applications requiring reliable electromagnetic interference suppression in power line systems.
Feature Summary
- Designed for easy and fast chassis mounting
- Provides single-stage EMI/EMC filtering
- Utilizes threaded stud input and output terminations
Applications
- General-purpose AC/DC EMI filtering
- Power line filter modules
- Chassis-mounted electronic equipment
Procurement Notes
Verify the specific datasheet version, as documentation may reference variants like FN2020A-60-24 or FN2020B-60-24. Confirm that the M6 threaded post termination matches your mechanical design requirements. Ensure the 60 A current rating and 250 VAC operating voltage align with your system's electrical specifications before procurement.
Selection Notes
Select this component when a single-phase, chassis-mountable filter with high current capacity is required. The M6 threaded post interface offers robust mechanical connection. Consider the single-stage topology for standard EMI suppression needs. Verify compatibility with 400 Hz frequency operations if applicable to your specific power system environment.
Part Context
This part belongs to the Schaffner FN2020 series, which consists of single-stage filters designed for straightforward installation. The series emphasizes ease of mounting and general-purpose utility. The FN2020-60-24 specifically denotes the 60 A current rating variant within this family of power line filter modules.
Replacement Considerations
Check for FN2020A-60-24 or FN2020B-60-24 as potential related variants. Ensure any substitute maintains the 60 A rating, M6 threaded posts, and single-phase configuration. Verify identical chassis mounting dimensions and electrical characteristics to guarantee seamless integration.
