FN2030-1-06

Overview

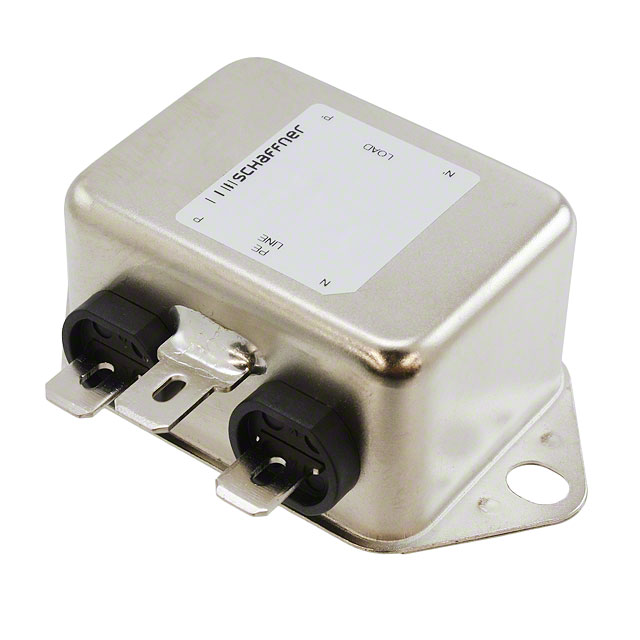

The Schaffner FN2030-1-06 is a single-phase, single-stage EMI power line filter designed for chassis mounting. It features Faston terminals and supports a rated voltage of 250 VAC with a current rating of 1 A. The unit includes an inductance of 20 mH and operates within a frequency range of 0 Hz to 400 Hz. Key electrical specifications include a leakage current of 310 mA and a maximum operating temperature of +100°C. The component measures 43.5 mm in length, 32.5 mm in width, and 24.3 mm in height, weighing approximately 58 grams.

Feature Summary

• Provides high attenuation performance for general-purpose AC/DC applications
• Utilizes a single-stage filter topology for effective EMI/RFI suppression
• Designed for secure chassis mounting using Faston termination style

Applications

• General-purpose AC/DC equipment requiring EMI suppression
• Single-phase power line filtering for electronic devices
• Chassis-mounted installations in industrial or commercial electronics

Procurement Notes

Verify the specific datasheet version and certification status (UL, CSA, IEC/EN) prior to procurement, as compliance documentation may vary by production batch. Confirm that the Faston terminal dimensions match the mating connector requirements in the target assembly. Ensure the chassis mounting holes align with the specified physical dimensions of 43.5 mm x 32.5 mm x 24.3 mm to avoid mechanical interference during installation.

Selection Notes

Select this component when a single-stage solution is sufficient for the required noise attenuation levels in single-phase systems. The 1 A current rating and 20 mH inductance make it suitable for low-power applications where space constraints favor a compact chassis-mount form factor. Consider the 310 mA leakage current specification to ensure it remains within safety limits for the connected load and regulatory environment.

Part Context

This part belongs to the Schaffner FN2030 series, which offers general-purpose EMC/RFI filters. The series provides various current ratings and inductance values to suit different power line requirements. The FN2030-1-06 specifically addresses the needs of applications requiring moderate attenuation with a 1 A capacity and 20 mH common-mode inductance.

Replacement Considerations

Direct substitutes within the same series include FN2030N1-1-06 and FN2030B-6-06, though these differ in inductance and current ratings. Verify compatibility before swapping, as changes in electrical parameters affect filtering performance and thermal characteristics.
