FN2030-10-06

Overview

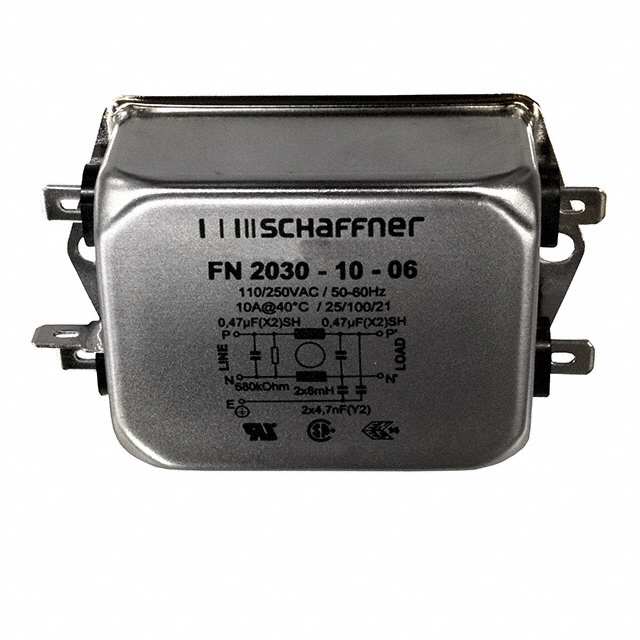

The Schaffner FN2030-10-06 is a single-phase, general-purpose AC/DC EMI filter designed for chassis mounting. It features Faston terminals and operates within a frequency range of 0 Hz to 400 Hz. The component is rated for a maximum voltage of 250 VAC/VDC and supports a continuous current of 10 A. Key electrical specifications include an inductance of 8 mH, capacitance of 470 nF, and a leakage current of 730 μA. It functions effectively across a temperature range of -25°C to 100°C with a power loss of 5.3 W.

Feature Summary

• Provides high attenuation performance for EMC/RFI suppression in single-phase applications
• Utilizes Faston terminal connections for straightforward integration
• Engineered for robust operation across a wide temperature spectrum

Applications

• Industrial equipment requiring EMI filtering
• Medical devices needing compliant power line conditioning
• General purpose AC/DC power supply protection

Procurement Notes

Verify the specific part number against official TE Connectivity or Schaffner documentation to ensure compatibility with system requirements. Confirm that the Faston terminal style matches the mating connector specifications. Check for any optional surge pulse protection variants if required by the application environment. Ensure the chassis mounting dimensions fit the designated enclosure space.

Selection Notes

Select this model when a 10 A current rating and 250 VAC/VDC voltage limit are required for single-phase filtering. The 8 mH inductance and 470 nF capacitance provide standard attenuation characteristics suitable for general industrial use. Consider the chassis mount form factor and Faston termination style during mechanical design integration.

Part Context

This component belongs to the FN2030 series of single-stage filters from Schaffner. The series offers various current ratings and terminal options to accommodate different power levels and connection needs. The FN2030-10-06 specifically addresses the 10 A segment of this product line.

Replacement Considerations

Check for FN2030B-10-06 as a potential variant within the same family. Verify terminal type and electrical parameters against original specifications before substitution.
