FN2030-12-06

Overview

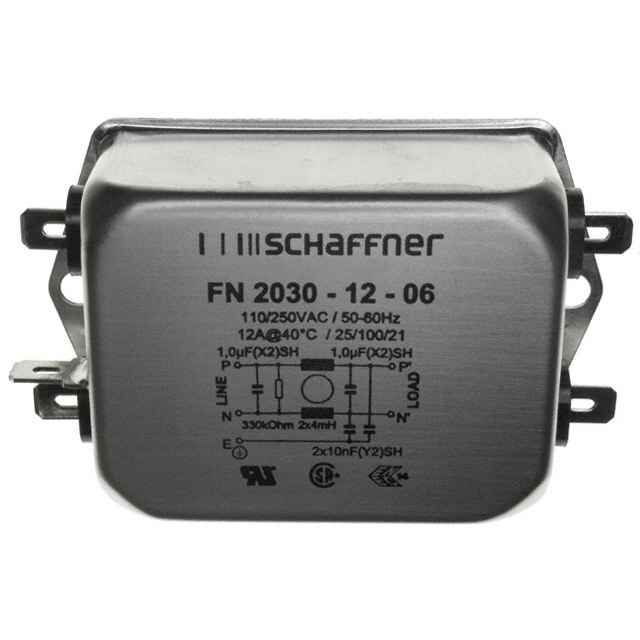

The Schaffner FN2030-12-06 is a single-phase, single-stage EMI power line filter designed for chassis mounting. It features fast-on terminals and supports a rated current of 12 A at 250 VAC. The unit operates within a frequency range of 0 Hz to 400 Hz and withstands temperatures from -25°C to +100°C. Key electrical parameters include a leakage current of 1.41 mA and a power loss of 0.9 W. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height.

Feature Summary

• Single-stage filtering architecture for effective noise suppression
• Chassis mount design with fast-on terminal connections
• Compliant with UL, CSA, and IEC/EN standards

Applications

• Power conditioning systems
• Industrial equipment requiring EMI protection
• Medical devices needing certified power filters

Procurement Notes

Verify the specific part number FN2030-12-06 against official TE Connectivity / Schaffner documentation to confirm ratings. Ensure compatibility with chassis mounting requirements and fast-on terminal specifications. Check for updated compliance certifications such as UL, CSA, and IEC/EN before procurement.

Selection Notes

Select this component for applications requiring single-phase EMI filtration at 12 A. Verify that the 250 VAC rating and 0–400 Hz frequency range match system requirements. Confirm chassis mounting space accommodates the specified dimensions and that fast-on terminals suit the wiring configuration.

Part Context

This component belongs to the FN2030 series of power line filters manufactured by TE Connectivity / Schaffner. The series offers various current ratings and configurations for EMC compliance. The FN2030-12-06 specifically addresses single-phase needs with fast-on termination options.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without confirming electrical and mechanical specifications.
