FN2030-16-06

Overview

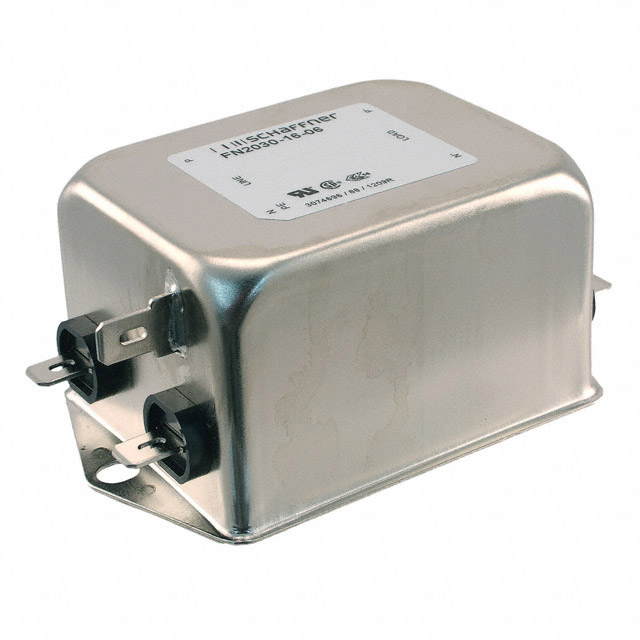

The FN2030-16-06 is a single-phase, single-stage power line filter manufactured by TE Connectivity / Schaffner. It features a 16 A current rating and a 250 VAC voltage rating, designed for chassis mounting with fast-on terminals. The unit operates within a frequency range of 0 Hz to 400 Hz and withstands temperatures from -25 °C to +100 °C. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 40.3 mm in height. It exhibits a leakage current of 1.41 mA and holds UL, CSA, and IEC/EN certifications.

Feature Summary

• Provides high-performance differential-mode attenuation for electromagnetic interference suppression
• Utilizes a single-stage filter configuration optimized for specific noise profiles
• Designed for secure chassis mounting with quick-connect terminal interfaces

Applications

• Industrial equipment requiring EMI filtering
• Medical devices needing certified power line protection
• Test and measurement instrumentation
• Power supplies operating at 400 Hz

Procurement Notes

Verify the manufacturer part number against official TE Connectivity or Schaffner documentation to ensure authenticity. Confirm that the specific suffix matches the required electrical ratings and terminal type. Check for RoHS compliance status and relevant safety certifications such as UL or CSA before finalizing procurement orders.

Selection Notes

Select this component when a single-stage filter with a 16 A capacity is required for chassis-mounted applications. Ensure the system operates within the specified 250 VAC and 400 Hz limits. Consider the physical dimensions and fast-on terminal style during PCB or panel layout planning to ensure proper fit and connection compatibility.

Part Context

This component belongs to the FN2030 series of AC/DC chassis filters from Schaffner. The series offers various current ratings from 1 A to 30 A. These filters are engineered for general-purpose EMI suppression in electronic systems where compact size and reliable performance are critical for maintaining signal integrity and regulatory compliance.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
