FN2030-16-08

Overview

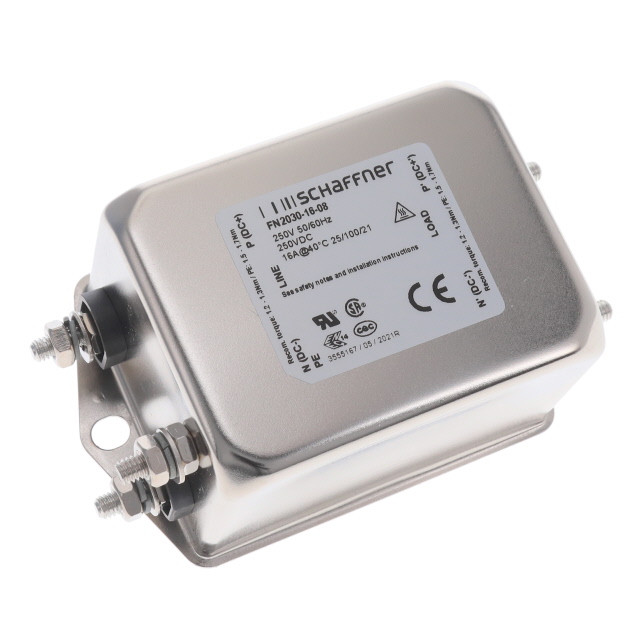

The Schaffner FN2030-16-08 is a single-phase EMC/EMI power line filter module rated for 16 A and 250 VAC. Designed for chassis mounting, it features threaded stud input and output terminations (M4). The component operates within a frequency range of DC to 400 Hz and provides high filter attenuation with differential mode performance.

Feature Summary

• High filter attenuation capabilities
• Differential mode performance optimization
• Threaded stud termination design

Applications

• Industrial equipment power filtering
• General purpose AC/DC chassis applications
• EMC compliance in power supply lines

Procurement Notes

Verify the specific termination style matches the M4 threaded stud requirement. Confirm that the 16 A current rating and 250 VAC voltage specifications align with the system's electrical demands. Ensure chassis mounting provisions are available for the physical installation of this module.

Selection Notes

Select this model when high attenuation and differential mode performance are required for single-phase applications. The threaded stud interface is suitable for robust connections in industrial environments. Consider the 16 A rating to ensure adequate capacity for the load without exceeding thermal limits.

Part Context

This component belongs to the FN2030 series from TE Connectivity Schaffner. The series offers rated currents from 1 to 30 A. It is designed as a general-purpose filter module for single-phase power lines, emphasizing high performance in noise suppression.

Replacement Considerations

Public confirmed substitute part numbers are not provided in the source material.
