FN2030-20-06

Overview

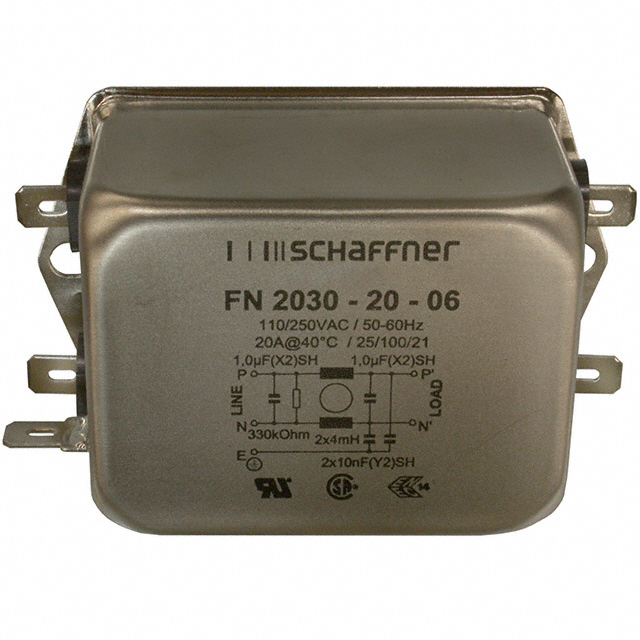

The Schaffner FN2030-20-06 is a single-phase, single-stage power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 20 A. The component operates within a frequency range of 0 Hz to 400 Hz and utilizes fast-on terminals for connection. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 40.3 mm in height. It has a maximum leakage current of 1.41 mA and functions between -25°C and +100°C.

Feature Summary

• Provides electromagnetic interference suppression through a single-stage filtering architecture.
• Utilizes fast-on terminal connections for straightforward circuit integration.
• Engineered for secure chassis mounting applications.

Applications

• Industrial equipment power conditioning
• Medical device power supply filtering
• Information technology hardware protection

Procurement Notes

Verify the specific part number against official manufacturer documentation to ensure compatibility with system requirements. Confirm that the fast-on terminal type matches existing connector specifications. Check for updated compliance certifications such as UL, CSA, and IEC/EN standards relevant to the target market before finalizing procurement decisions.

Selection Notes

Select this component when a single-phase filter with a 20 A capacity is required for chassis-mounted installations. Ensure the operating environment stays within the specified temperature range of -25°C to +100°C. Verify that the 250 VAC rating aligns with the system's electrical parameters and that fast-on termination is suitable for the wiring configuration.

Part Context

This component belongs to the FN2030 series of power line filters manufactured by TE Connectivity / Schaffner. The series offers various current ratings and terminal options to suit different EMC requirements. The FN2030-20-06 specifically addresses high-current applications requiring reliable noise reduction in single-phase AC power systems.

Replacement Considerations

Consult official substitution guides for verified alternative part numbers. Ensure any replacement maintains identical electrical ratings, physical dimensions, and terminal types to guarantee proper fit and function without redesigning the host assembly.
