FN2030-3-06

Overview

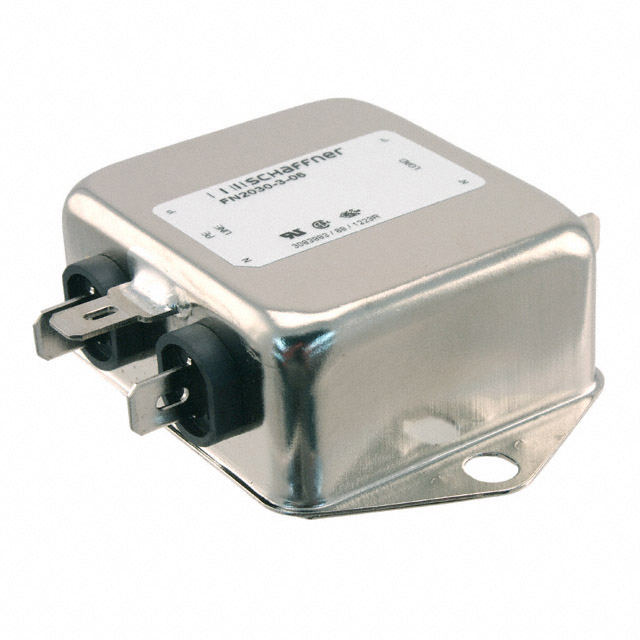

The Schaffner FN2030-3-06 is a single-stage, single-phase power line filter designed for chassis mounting. It features a rated voltage of 250 VAC and a current rating of 3 A. The device operates within a frequency range of 0 Hz to 400 Hz and utilizes fast-on terminals for connection. Key electrical specifications include a leakage current of 460 uA. Physical dimensions are 50.5 mm in length, 44.5 mm in width, and 22.3 mm in height. It supports an operating temperature range from -25 C to +100 C and holds UL, CSA, and IEC/EN certifications.

Feature Summary

• Single-stage filtering configuration for electromagnetic interference suppression
• Chassis mount design with fast-on terminal connections
• Certified for international safety standards including UL, CSA, and IEC/EN

Applications

• Power supply input stages for electronic equipment
• Industrial control systems requiring EMI suppression
• Medical devices adhering to strict safety regulations

Procurement Notes

Verify the specific datasheet version for the FN2030-3-06 to confirm compliance with current regional safety standards. Ensure that the fast-on terminal pitch matches the mating connector specifications in the target assembly. Cross-reference the 460 uA leakage current limit against applicable medical or sensitive equipment requirements before finalizing procurement.

Selection Notes

Select this component when a single-stage filter solution is sufficient for the application's noise attenuation needs. The 3 A current rating suits moderate power loads, while the 250 VAC rating aligns with standard low-voltage AC distribution systems. Consider the physical footprint and chassis mounting requirement during mechanical design integration.

Part Context

This part belongs to the Schaffner FN2030 series, which offers premium EMI filters designed for easy chassis installation. The series provides various current ratings and configurations to address different EMC requirements in power line applications.

Replacement Considerations

Consult official Schaffner documentation for verified substitute part numbers. Do not assume cross-compatibility with other series without verifying pinout, electrical ratings, and certification status.
