FN2030-30-08

Overview

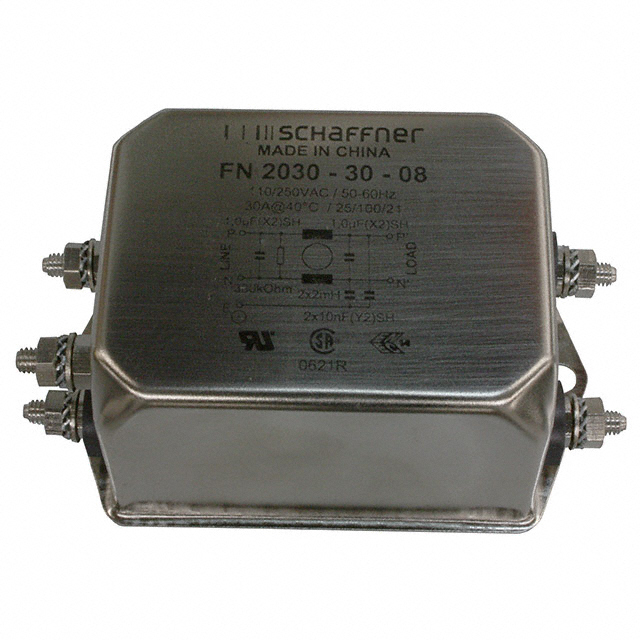

The Schaffner FN2030-30-08 is a single-phase EMI/EMI line filter module designed for chassis mounting. It features a two-stage filtering configuration with threaded stud input and output terminations. The component supports a current rating of 30 A and operates at voltages up to 250 VAC or DC, within a frequency range of DC to 400 Hz. It utilizes M4 threaded posts for secure installation.

Feature Summary

• Two-stage filtering architecture for enhanced noise suppression
• Threaded stud termination style for robust mechanical connection
• Chassis mount design for direct panel integration

Applications

• Industrial power supply units
• Medical equipment power inputs
• General purpose AC/DC conversion systems

Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm terminal type and capacitance values. Ensure the mounting hole pattern matches the chassis design. Confirm compliance requirements such as CSA, ENEC, or UR certifications are necessary for the target market before ordering.

Selection Notes

Select this model when high current handling at 30 A is required alongside effective EMI attenuation in a compact chassis-mount form factor. The threaded stud interface provides superior mechanical stability compared to quick-connect types in high-vibration environments. Verify that the operating temperature range of -25°C to 100°C aligns with the system's thermal profile.

Part Context

This component belongs to the FN2030 series from Schaffner, which offers premium EMI filters designed for easy and fast chassis mounting. The series is characterized by its robust construction and suitability for demanding industrial and commercial applications requiring reliable power line conditioning.

Replacement Considerations

Publicly confirmed substitute part numbers for FN2030-30-08 were not identified in the provided source material. Cross-referencing with similar Schaffner models or other manufacturers requires detailed electrical and mechanical comparison.
