Product Detailed Parameters
- Description：LINE FILTER 250VAC 6A CHASS MNT
- Series：FN 2030
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：6:00 AM
- Frequency - Operating：DC ~ 400Hz
- Applications：General Purpose
- Approval Agency：CSA, ENEC, UR
- Operating Temperature：-25°C ~ 100°C
- Mounting Type：Chassis Mount
- Termination Style：Quick Connect
- Inductance：8mH
Download product information
Overview

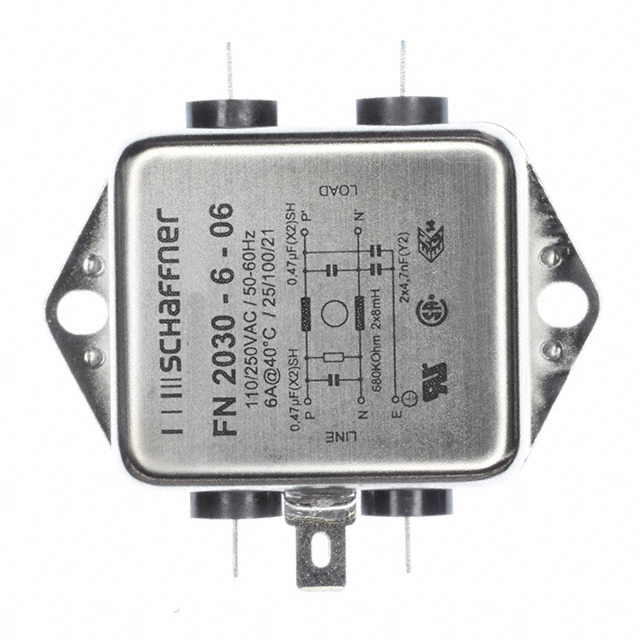

The Schaffner FN2030-6-06 is a single-phase, single-stage EMI power line filter designed for chassis mounting. It supports a rated voltage of 250 VAC and a continuous current of 6 A. The component operates within a frequency range of 0 Hz to 400 Hz and utilizes fast-on terminals for connection. Key electrical parameters include a leakage current of 660 uA, an inductance of 8 mH, and a capacitance of 470 nF. It functions reliably between -25°C and +100°C.
Feature Summary
- Single-stage filtering configuration for effective noise suppression
- Chassis mount design for secure installation
- Fast-on terminal style for simplified wiring
Applications
- Industrial equipment power conditioning
- Medical device power supplies
- General purpose AC/DC power lines
Procurement Notes
Verify the specific part number against official TE Connectivity or Schaffner documentation to confirm compatibility with your system requirements. Ensure that the fast-on terminal dimensions match your connector specifications. Check for updated compliance certifications such as UL, CSA, and IEC/EN before finalizing procurement decisions.
Selection Notes
Select this model when a single-stage filter solution is sufficient for the application's EMI reduction needs. The 6 A rating and 250 VAC support make it suitable for standard single-phase power inputs. Consider the physical dimensions and chassis mounting requirements during the mechanical design phase to ensure proper fit and thermal management.
Part Context
This component belongs to the FN2030 series of single-phase EMI filters manufactured by Schaffner EMC Inc., now part of TE Connectivity. The series is characterized by its compact chassis-mount form factor and versatile terminal options, providing reliable performance in various industrial and commercial power applications.
Replacement Considerations
FN2030B-6-06
FAQ
What is the maximum operating temperature for the FN2030-6-06?
The maximum operating temperature is +100°C.
Does the FN2030-6-06 support DC input?
Yes, the filter is rated for 250V AC/DC operation.
