FN2030-8-06

Overview

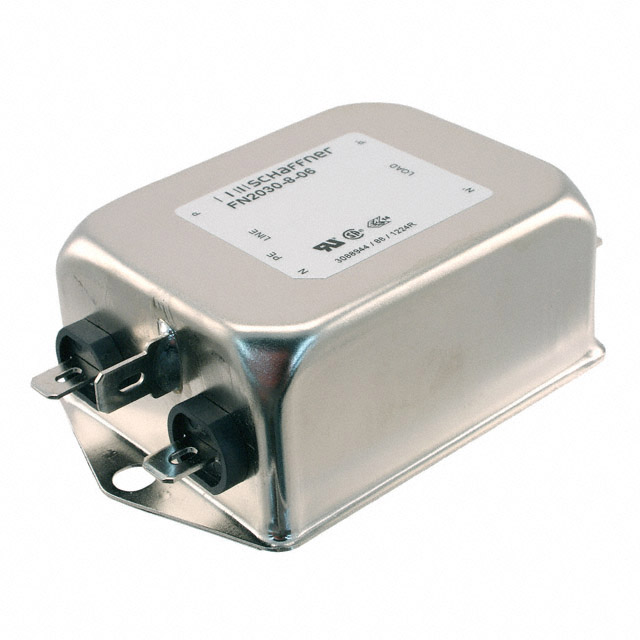

The Schaffner FN2030-8-06 is a single-phase, single-stage power line filter designed for chassis mounting. It features fast-on terminals and supports a rated voltage of 250 VAC with an 8 A current rating. The component operates within a frequency range of 0 Hz to 400 Hz and withstands temperatures from -25°C to +100°C. Physical dimensions are 64.8 mm in length, 49.8 mm in width, and 30.3 mm in height, weighing 170 g. It exhibits a leakage current of 660 uA and holds UL, CSA, and IEC/EN certifications.

Feature Summary

• Provides electromagnetic interference suppression through single-stage filtering architecture
• Utilizes fast-on terminal style for direct circuit board or busbar connection
• Engineered for chassis mounting to ensure stable mechanical integration

Applications

• Industrial equipment power input stages
• Medical device power supplies
• Information technology hardware filtering

Procurement Notes

Verify the specific suffix configuration against the manufacturer datasheet to confirm terminal type and certification requirements. Ensure the ordering part number matches the exact electrical ratings and physical dimensions required for the chassis mount application. Cross-reference the manufacturer identifier to distinguish between original production and potential obsolescence notices.

Selection Notes

Select this component when a single-stage filter meets the attenuation requirements for 8 A applications. Confirm that the fast-on terminal style aligns with the system wiring interface. Verify that the chassis mounting footprint fits the available enclosure space. Check compliance needs against UL, CSA, and IEC/EN standards before finalizing the design.

Part Context

This model belongs to the FN2030 series of general-purpose AC/DC EMC/RFI filters. The series offers high attenuation performance for single-phase applications. The product is manufactured under the TE Connectivity / Schaffner brand portfolio, focusing on power condition solutions for various electronic systems.

Replacement Considerations

Consult official substitution lists for equivalent current ratings and terminal styles. Verify dimensional compatibility and certification equivalence before replacing the component in existing designs.
