FN2030A-16-06

Overview

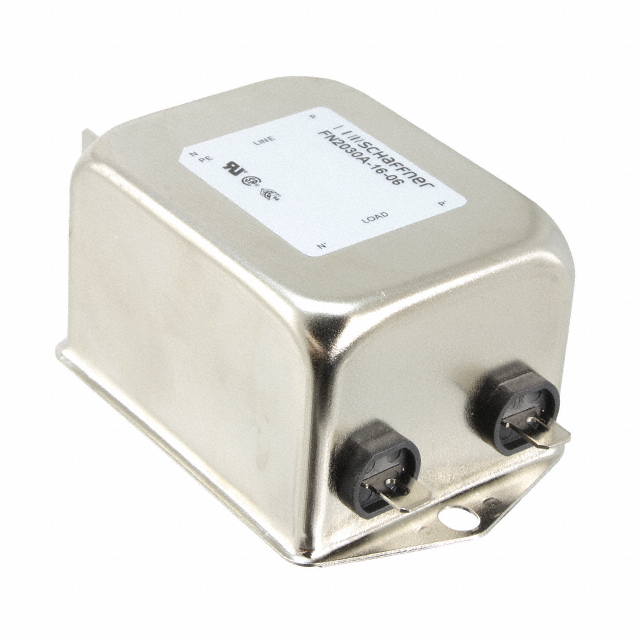

The Schaffner FN2030A-16-06 is a single-phase EMI power line filter designed for chassis mounting. It supports a rated voltage of 250V AC/DC and operates at frequencies up to 400Hz. The unit handles a maximum current of 16A with a leakage current of 70mA. Key electrical parameters include an inductance of 4mH, capacitance of 10nF, and resistance of 330kΩ. It functions within a temperature range of -25°C to +100°C, dissipating 6.1W of power loss. Dimensions are 85mm length, 54mm depth, and 40.3mm height.

Feature Summary

• Single-stage filtering configuration for effective noise suppression
• Fast-on terminal style for rapid circuit integration
• Chassis mount design for secure mechanical installation

Applications

• Avionic equipment power conditioning
• Industrial control systems requiring 400Hz compatibility
• Medical device power supplies

Procurement Notes

Verify the specific suffix against official datasheets to confirm terminal type and certification status. Ensure the operating environment remains within the specified thermal limits. Confirm that the 16A current rating aligns with the system's peak load requirements. Check for compliance with relevant safety standards such as UL or CSA if required by the application.

Selection Notes

Select this model when a single-stage solution is sufficient for the electromagnetic interference profile. The low capacitance value minimizes leakage current, making it suitable for sensitive applications. Ensure the chassis mounting holes align with the physical dimensions provided. Consider the 400Hz frequency capability if used in aerospace or specialized industrial contexts.

Part Context

This component belongs to the FN2030 series of single-phase EMI filters manufactured by TE Connectivity Schaffner. The series is characterized by its compact chassis-mount form factor and fast-on termination options. It is engineered for applications requiring reliable noise attenuation in power lines without excessive bulk.

Replacement Considerations

FN2030A-4-06 offers similar characteristics with a lower current rating of 4A.
